Key Features and Benefits

  • High-performance system engineered to meet network requirements for 10 Gb or 100 Gb applications
  • PanGen OM3 system tested at link length of 300 m with two mated pair connectors performed with a packet bit error rate (BER) of 10-12, exceeding the IEEE specification requirements.
  • PanGen OM4 system tested at link length of 550 m with two mated pair connectors performed with a packet bit error rate (BER) of 10-12, exceeding the IEEE specification requirements
  • Installations are covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards
  • A single point of contact for all PanGen inquiries
  • All connectivity components are 100% performance-tested
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers
  • 10 Gb or 100 Gb optical performance that exceeds IEEE 802.3 specifications
  • Fully compatible suite of GenSPEED® cable, Panduit connectors and patch cords

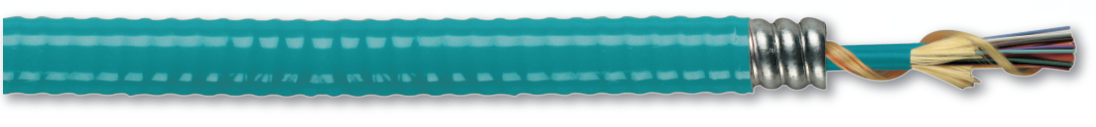

GenSPEED® OM2/OM3/OM4/OM5 Optical Fiber Cable

  • Industry-leading GenSPEED® Tight Buffer cabled attenuation allows for lower link loss and more headroom in loss budget
    • 2.6 dB/Km @ 850 nm vs. 3.5 dB/Km standard
    • 0.6 dB/Km @ 1350 nm vs. 1.0 dB/Km standard
  • Cable designs in various constructions for premise, outside plant and indoor/outdoor applications.

Cable Types

Cable Style Cable Type Application Environment Available Fiber Counts Product Line Armoring Available
Distribution Plenum
Tight Buffer
Indoor
2-24, 36-144
800-00-AA-CCC-BB
Interlock Aluminum
Distribution Riser
Tight Buffer
Indoor
2-24, 24-144
400-00-AA-CCC-BB
Interlock Aluminum
I/O Distribution Plenum
Tight Buffer
Indoor/Outdoor
2-24, 24-144
C1182-00-AA-CCC-BB
Interlock Aluminum
I/O Distribution Riser
Tight Buffer
Indoor/Outdoor
2-24, 24-144
C1181-00-AA-CCC-BB
Interlock Aluminum
Single Jacket Riser, Single Jacket Plenum
Loose Tube
Indoor/Outdoor
2-96
DRLDB-00-AA-CCC-BB, DPLDB-00-AA-CCC-BB
Interlock Aluminum
Loose Tube Single Jacket
Loose Tube
Outdoor
4-288
EDH1JKT-12-AA-CCC-BB
Corrugated Coated Steel or Tape

*Where AA equals glass type, BB equals attenuation code and CCC equals fiber count

**AA: OM1 equals G6, OM2 equals G5, OM3 equals G3, OM4 equals G4, OM5 equals 5K

Panduit Connectivity

Pre-Polished Field Terminated Connectors

FLCSMCXAQY

LC Simplex Multimode OptiCam Connector OM3/OM4 900µm Aqua Boot

FLCDMCXAQY

LC Duplex Multimode OptiCam Connector OM3/OM4 900µm Aqua Boot

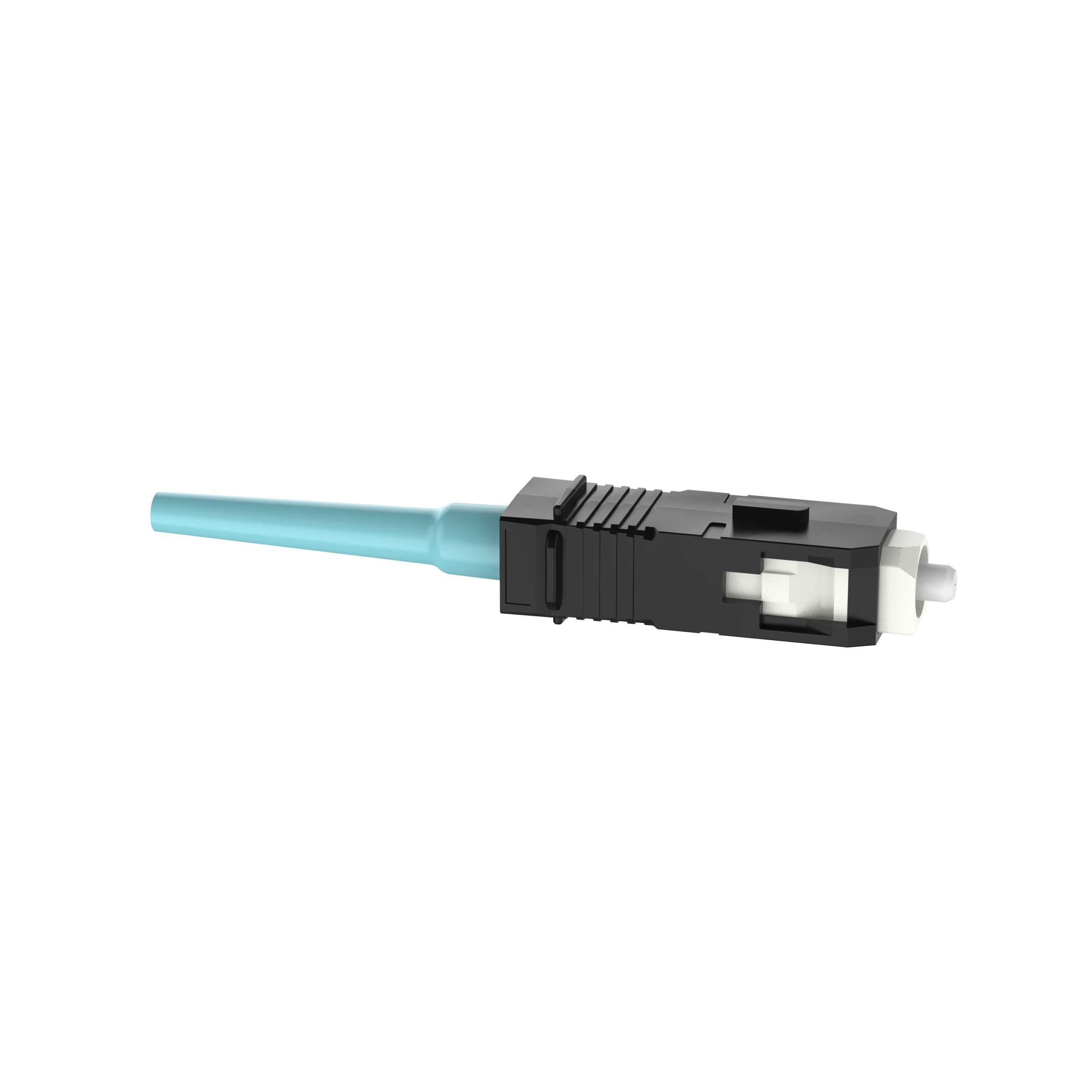

FSC2MCXAQ

SC Simplex Multimode OptiCam Connector OM3/OM4 900µm Aqua Boot

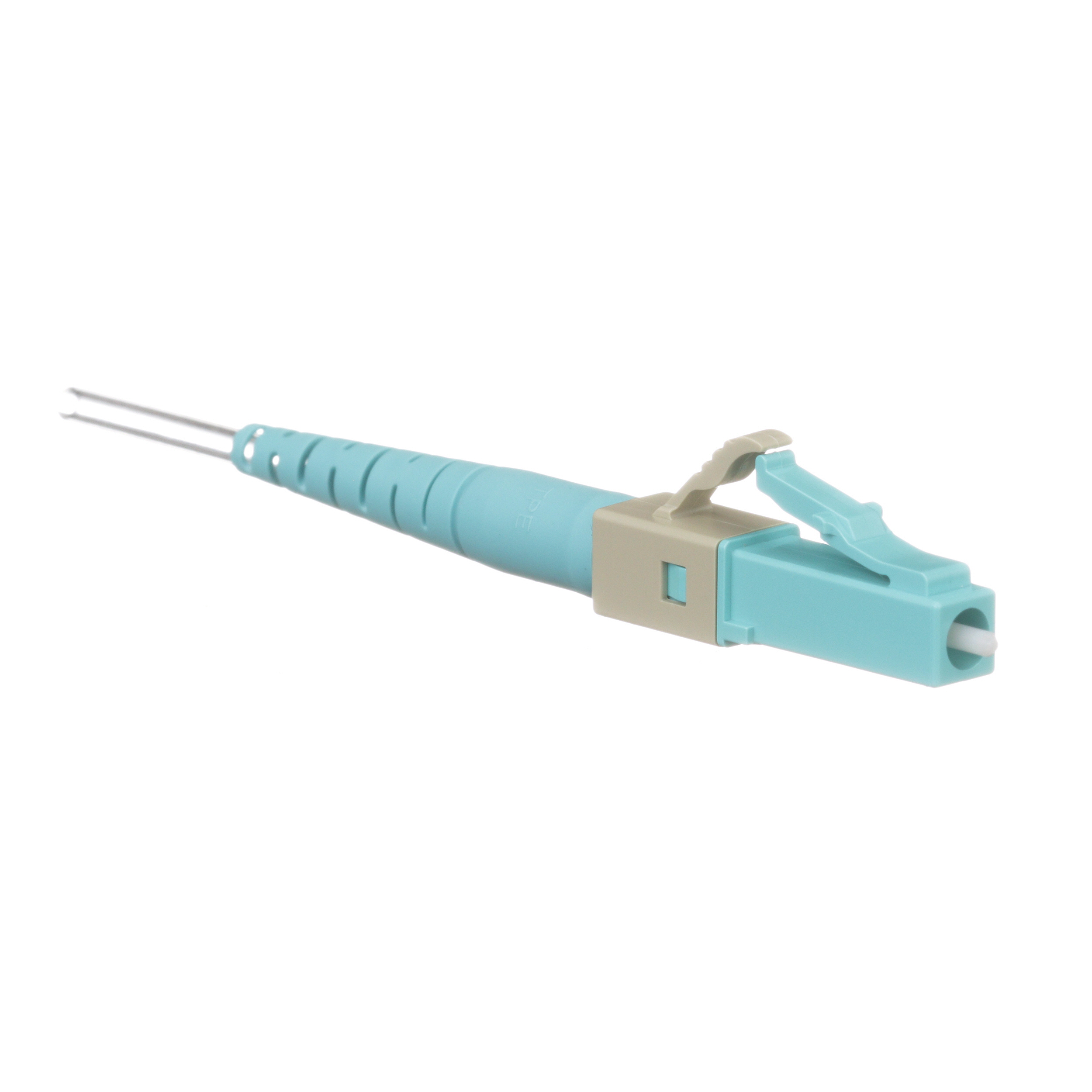

FLCS2/9SOCPXAQ

LC Multimode Fusion Splice Connector 50/125μm Aqua Boot

Fiber Distribution Products

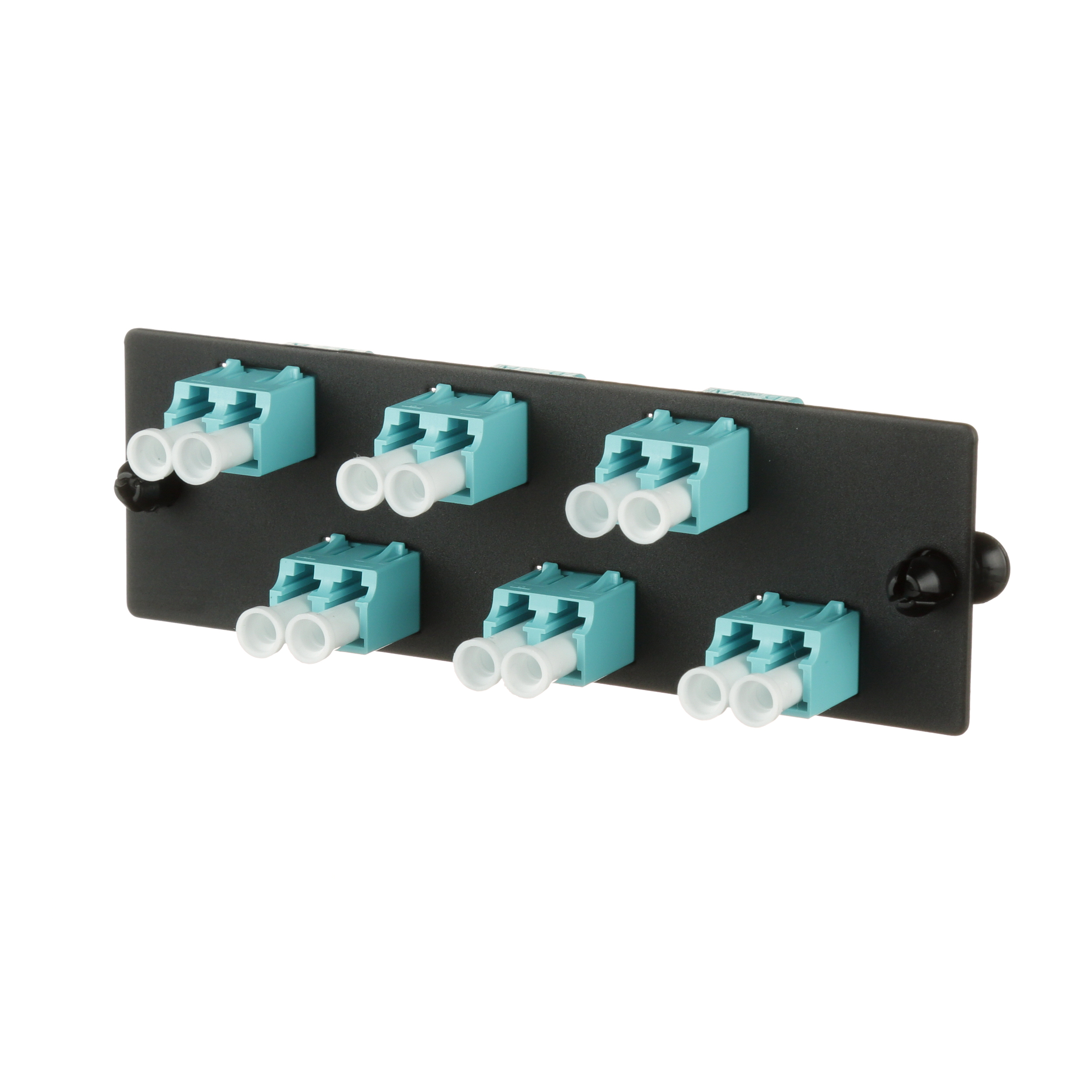

FAP6WAQDLCZ

Fiber Adapter Panel, 6-port Duplex LC (Aqua) with Zirconia Split Sleeves for Multimode

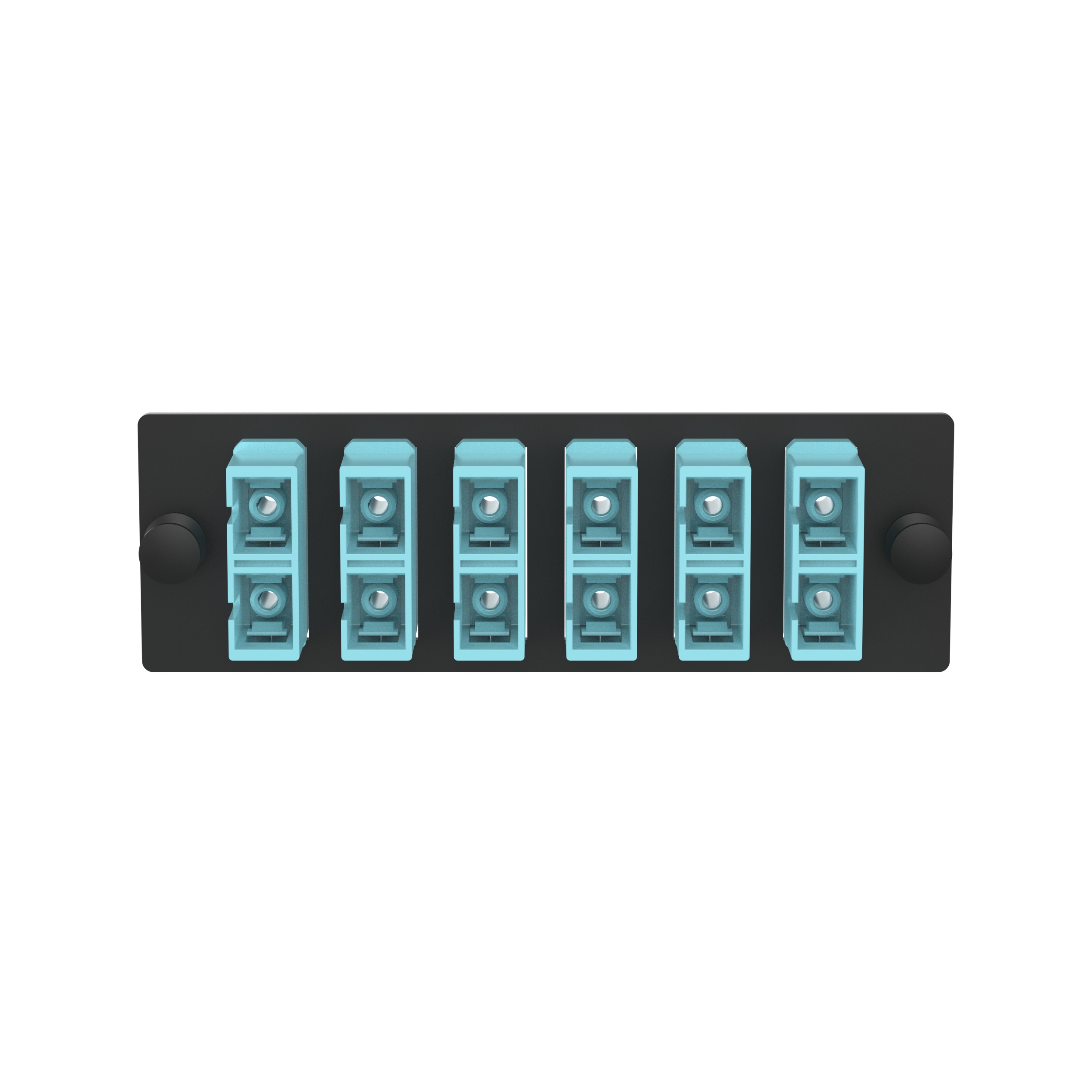

FAP6WAQDSCZ

Fiber Adapter Panel, 6-port Duplex SC (Aqua) with Zirconia Split Sleeves for Multimode

FRME1U

Rack Mount Fiber Enclosure, 1 RU

FRME2U

Rack Mount Fiber Enclosure, 2 RU

FRME4

Rack Mount Fiber Enclosure, 4 RU

Pre-Terminated Connectivity

FX1BN1NNNSNM001

1-fiber OM4, 900µm buffered pigtail, with no jacket, LC to pigtail

FZ1BN1NNNSNM001

1-fiber OM4, 900µm buffered pigtail, with no jacket, LC to pigtail

FX2ERLNLNSNM001

2-fiber OM3 10 GbE patch cord, riser {OFNR} rated, LC duplex, 1.6mm jacket, 1 meter

FZ2ERLNLNSNM003

2-fiber OM3 10 GbE patch cord, riser {OFNR} rated, LC duplex, 1.6mm jacket, 3 meter

FZ2ERLNLNSNM001

2-fiber OM4 10 GbE patch cord, riser {OFNR} rated, LC duplex, 1.6mm jacket, 1 meter

Field Termination Kits

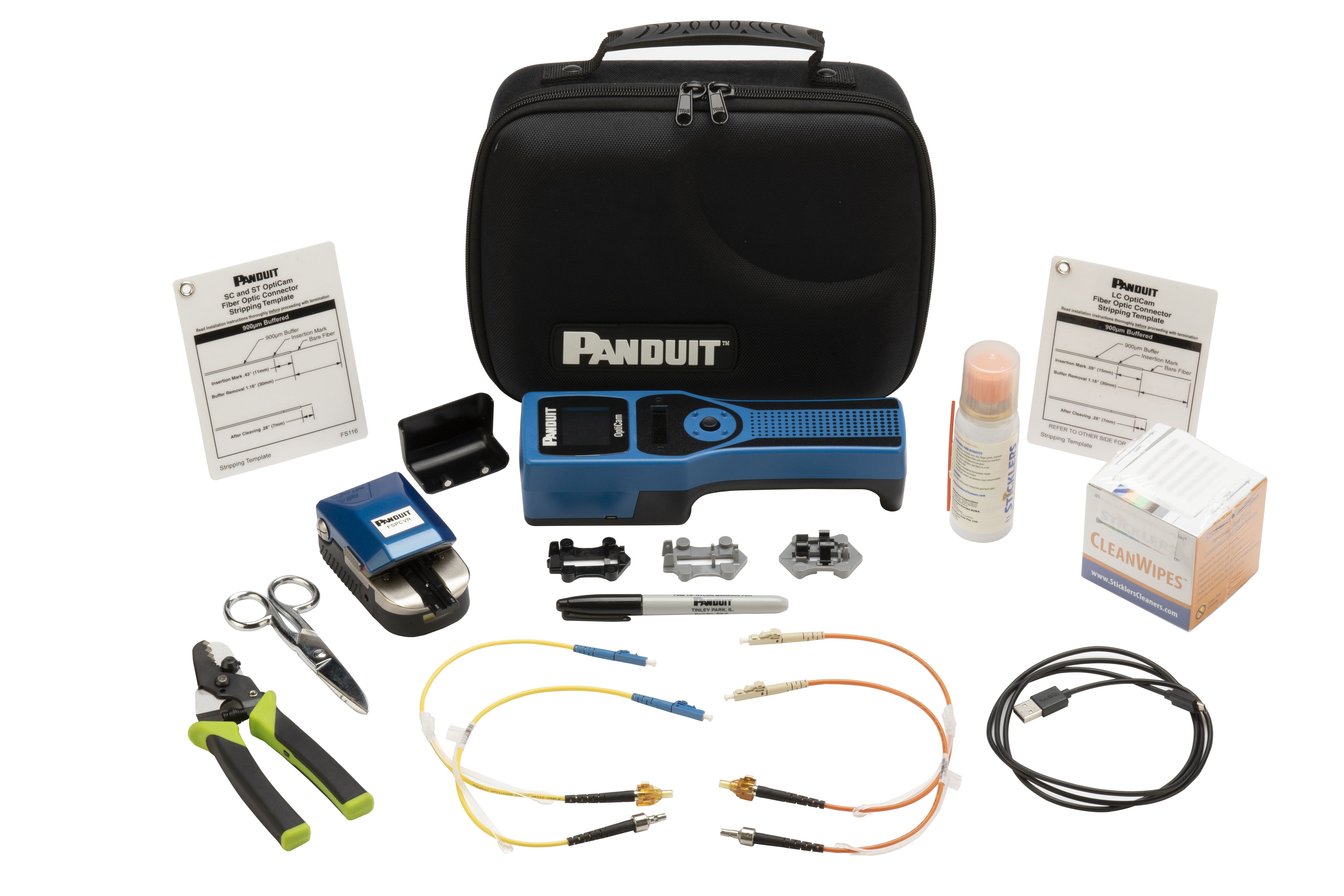

FOCTT2-PKIT2

OptiCam 2 Termination Tool Kit with Precision Rotary Cleaver

FOCTT2-KIT

OptiCam 2 Termination Tool Kit
