Category 5e System Solutions

Topics

Details

Key Features and Benefits

  • Designed to exceed ANSI/TIA-568.2-D
  • Installations are covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards
  • A single point of contact for all PanGen inquiries
  • All connectivity components are 100% performance-tested.
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers
  • TRU-Mark® footage marking system to help eliminate unused lengths of cable and save installation time
  • Jack modules feature the patented Giga-TX™ technology for terminations, which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
  • Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tangle-free latch that prevents snags and provides easy release for simple moves, adds and changes

Recommended for:

  • IEEE 802.3: 1000BASE-T, 100BASE-T, 10BASE-T, PoE, PoE+,PoE++
  • CDDI, Token Ring, ATM
  • Broadband and Baseband Analog Video
Electrical Value Guaranteed Channel Headroom over ANSI/TIA Category 6A
Insertion Loss
5%
NEXT
6 dB
PSNEXT
7.5 dB
ACR-N
7 dB
PSACR-N
9 dB
ACR-F
4 dB
PSACR-F
6 dB
Return Loss
2 dB

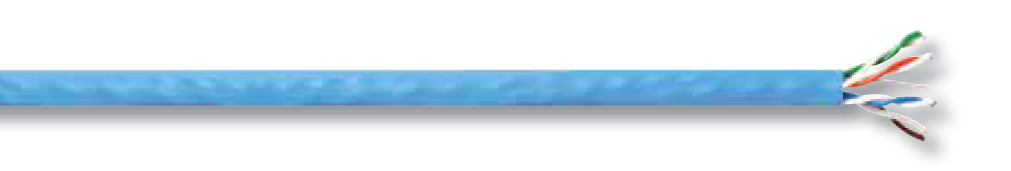

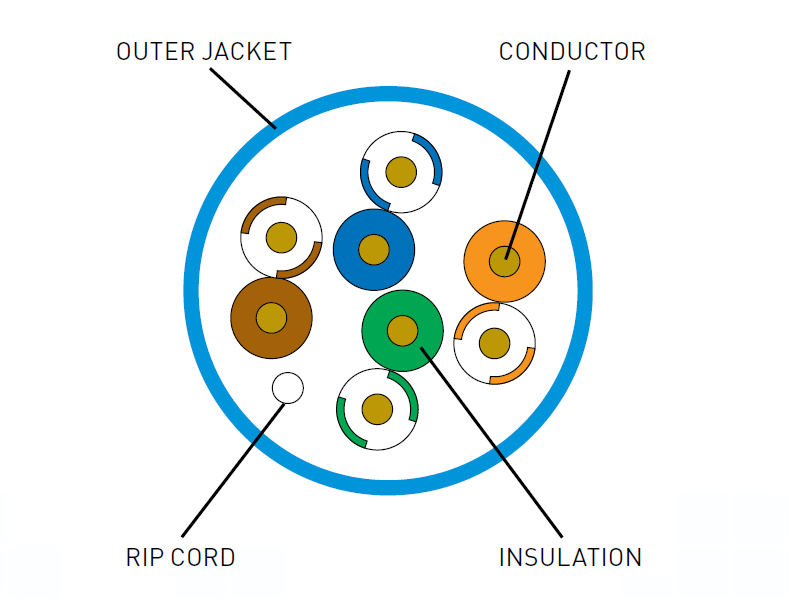

GenSPEED® 5500 Premium Category 5e Cable

  • Ensures increased headroom for future applications, lower bit-error rates, and higher signal transmission quality
  • Enhanced signal-to-noise ratio, improving bit-error rate
  • Performance guaranteed to 350 MHz
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc)
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc
  • TRU-Mark® print legend contains footage markings from 1000’ to 0’
  • Third-party verified
  • Made in the U.S.A.

Part Numbers

Jacket Color CMR (Non-Plenum) Spool CMP (Plenum) Spool

Blue

6133282
6131282

White

6133492
6131618

Notes:

  • Non-stock items may be subject to minimum order quantities.
  • Other colors available.
  • Spool = Standard packaging: 1000′

Panduit Connectivity

Mini-Com® TX5e™ UTP Jack Modules

  • Exceed ANSI/TIA-568.2-D
  • All jack modules are 100% performance-tested and individually serialized for future traceability
  • Compatible with all Mini-Com Modular Patch Panels, Faceplates and Surface Mount Boxes
  • Universal termination cap is color-coded for T568A and T568B wiring schemes
CJ5E88TGBU*

Category 5e, RJ45, 8-position, 8-wire universal module

CJ5E88TGBU*-24

24-pack Category 5e, RJ45, 8-position, 8-wire universal module

CJ5E88TGBU*-C

100-pack Category 5e, RJ45, 8-position, 8-wire universal module

close-up of FP6X88MTG
FP6X88MTG

Category 6A RJ45 UTP Field Term Plug for field termination of 4-pair UTP cable; compatible with Category 6 and Category 5e channel

6A UTP Connector, Plenum RJ45 Cord, 1 M
FC-ICCP1MBU

Category 6A UTP FieldCord™ Connector, RJ45, 1 meter plenum cord

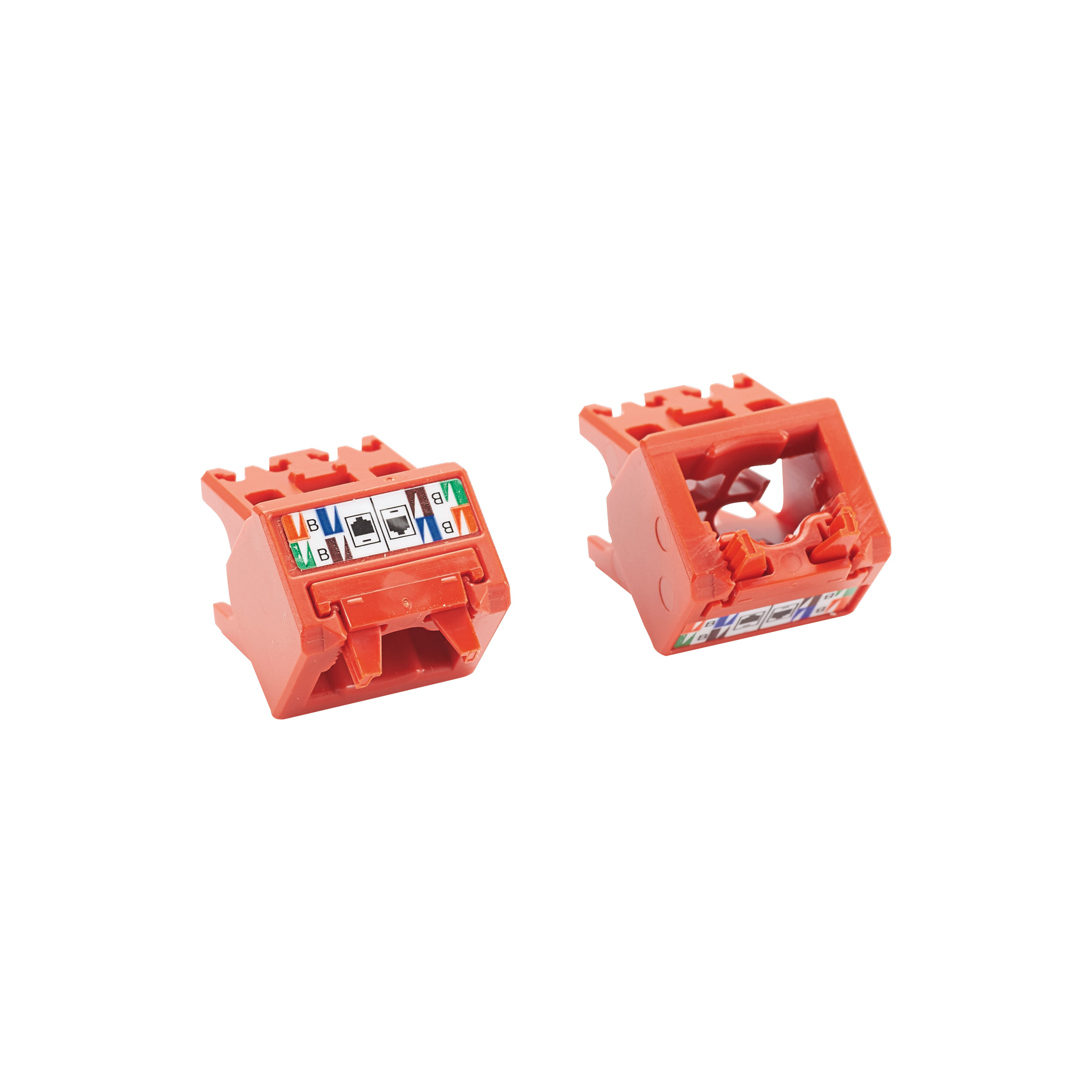

CJUDCAPRD

45° angled up/down TG wire cap, off white. For use with TX5e™ jack

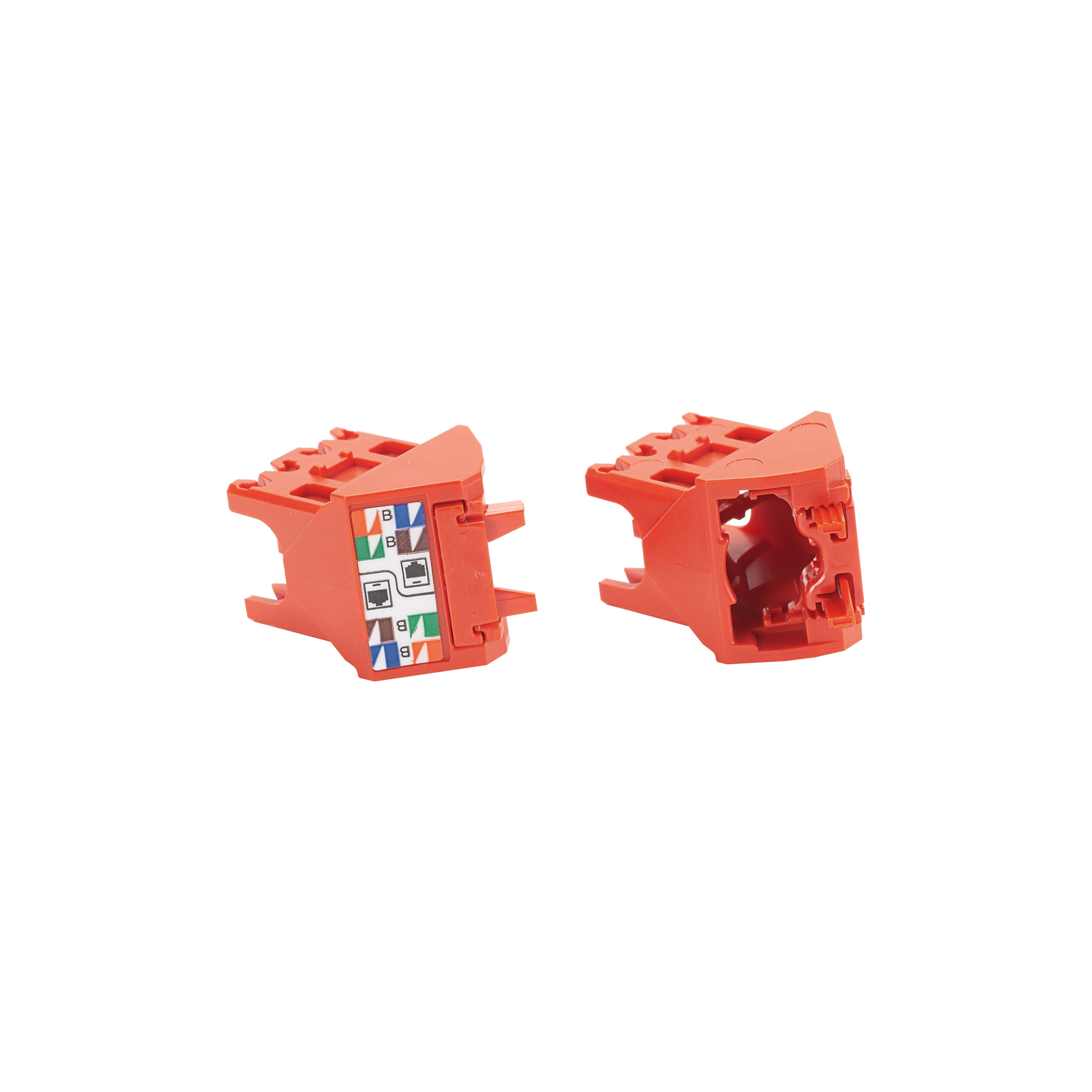

CJLRCAPRD

45° angled left/right TG wire cap, off white. For use with TX5e™ jack

* Product is listed in Blue. To designate a different color, replace BU (Blue) with available colors: IW (Off White), EI (Electric Ivory), IG (International Grey), WH (White), BL (Black), RD (Red), YL (Yellow), GR (Green), OR (Orange), or VL (Violet).

TX5e and TX5e-28 Copper UTP Patch Cords

  • Exceed all industry performance standards for Category 5e
  • 100% performance-tested
  • Available in a variety of colors and lengths for design flexibility
  • Category 5e 28 AWG cord is less than 50% the size of traditional 24 AWG cords
  • UTP28CH cords support up to 96 meters of channel length (when used with 6 meters of patch)

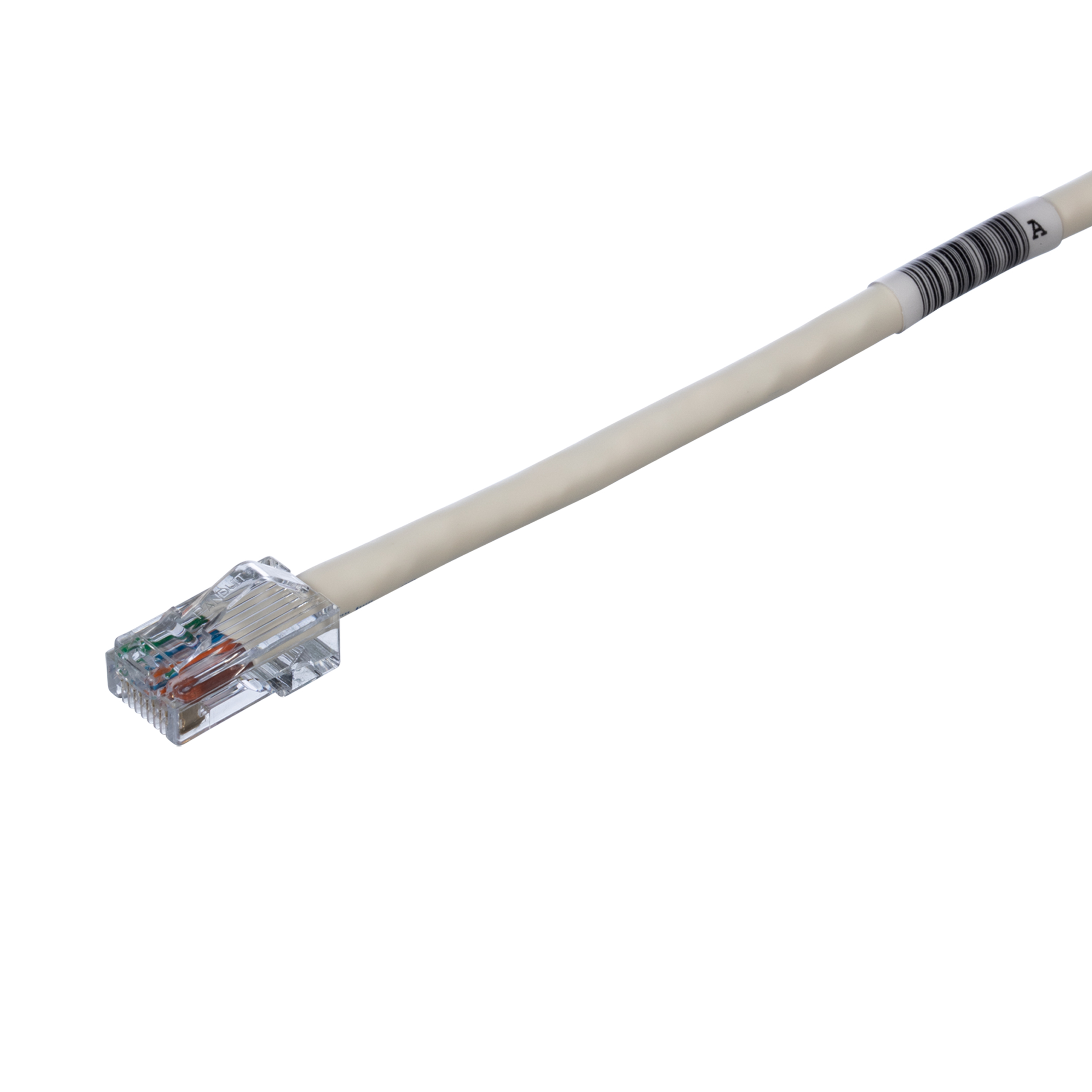

UTPCH3Y*

Category 5e, 24 AWG, UTP patch cord with Pan-Plug modular plugs on each end

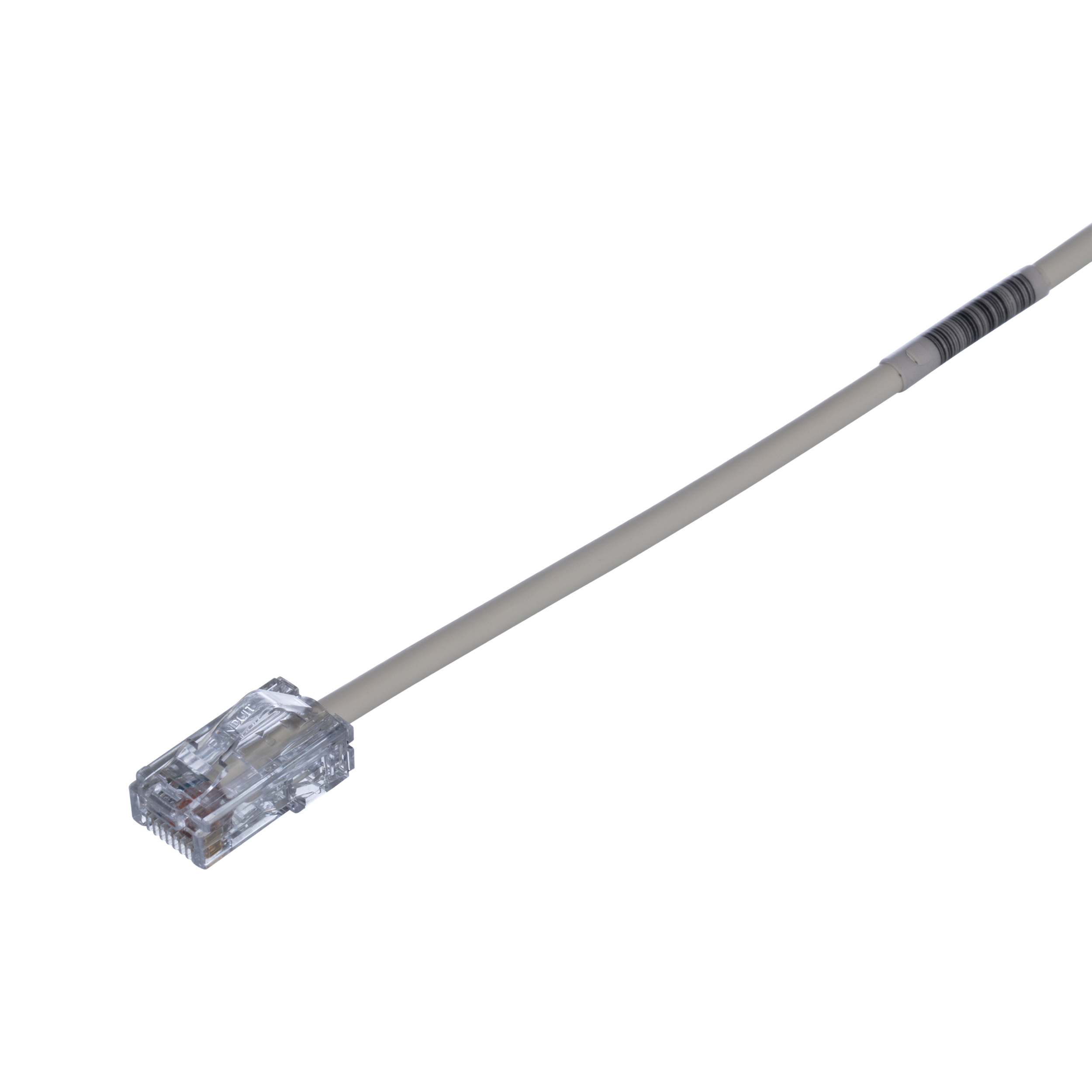

UTP28CH3*

Category 5e, 28 AW, small diameter UTP patch cord with Pan-Plug modular plugs on each end

* Available in lengths 1 to 20 feet (increments of one foot and 25, 30, 35, 40 feet. Patch cords listed in Off White. To designate other colors, add suffix before the Y at the end of the part number: BL (Black), BU (Blue), GR (Green), GY (Gray), OR (Orange), RD (Red), YL (Yellow), or VL (Violet). For example, the part number for a blue 15-foot patch cord is UTPCH15BUY.

UTP Modular Patch Panels

  • Mount to standard EIA 19” and 23” racks
  • Accept Mini-Com® Modules, which snap in and out for easy moves, adds, and changes
  • Angled versions are ideal for higher density applications; facilitate proper bend radius control and minimize the need for horizontal cable managers

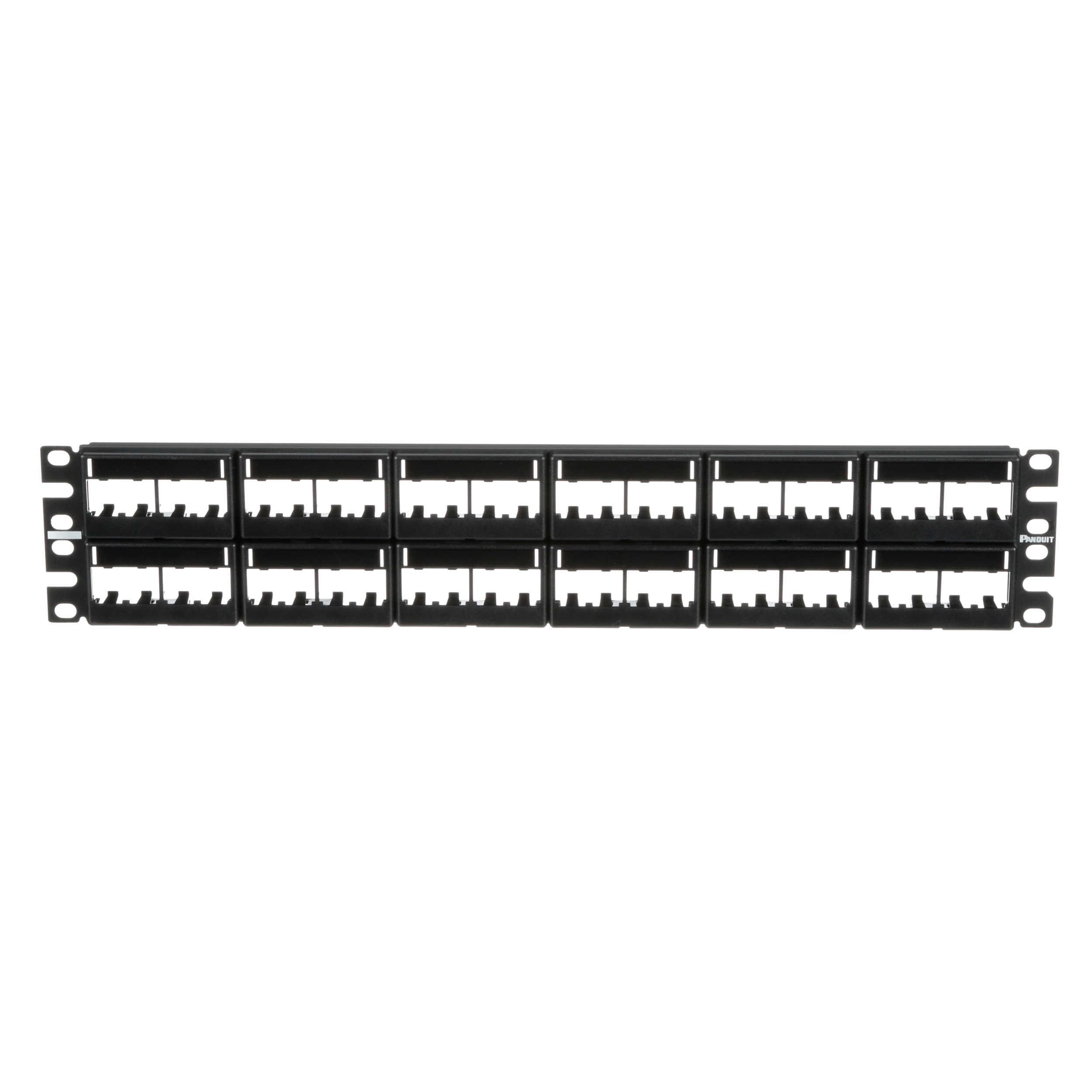

CPPL48WBLY

48-port, 2 RU, modular patch panel with front access faceplate and label pocket

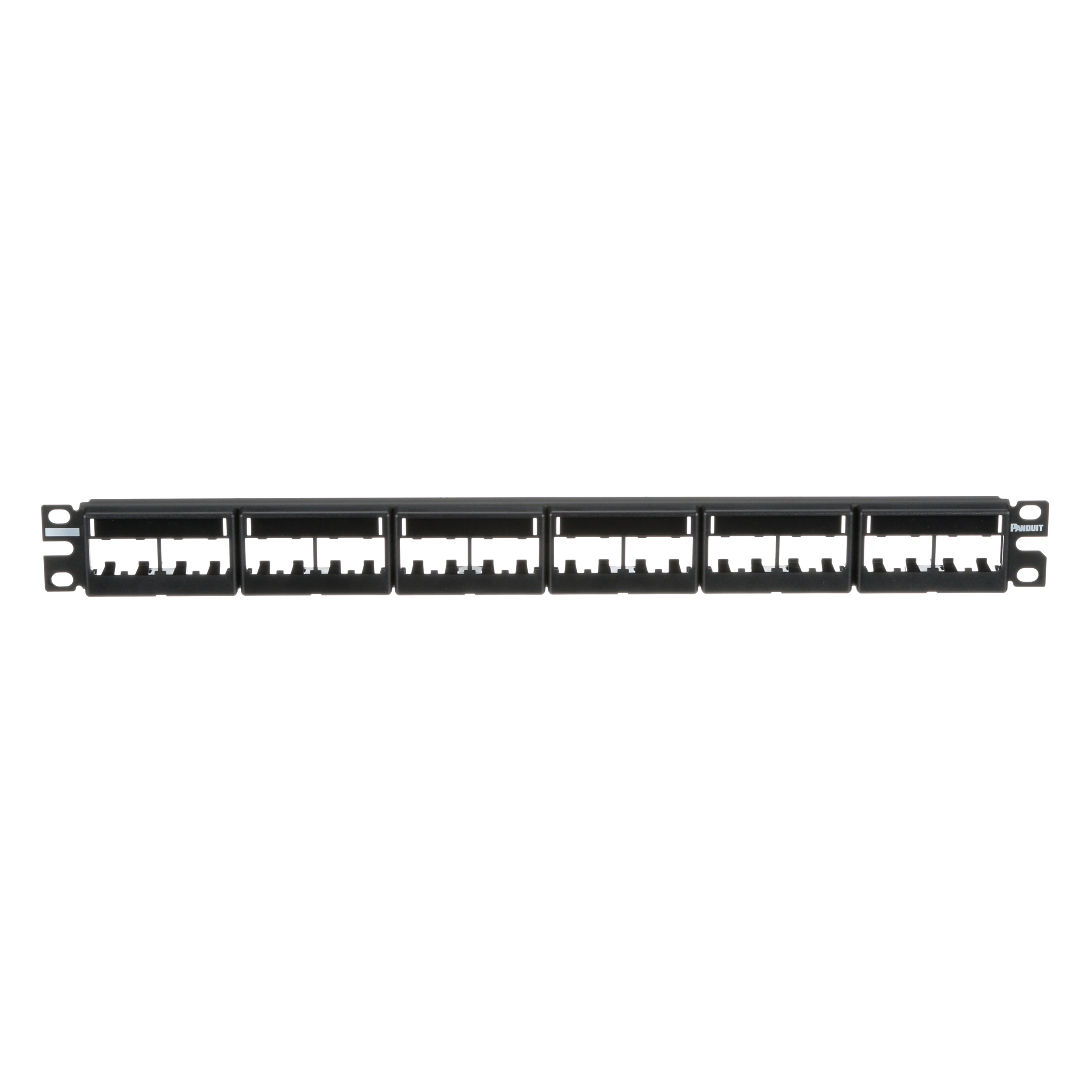

CPPL24WBLY

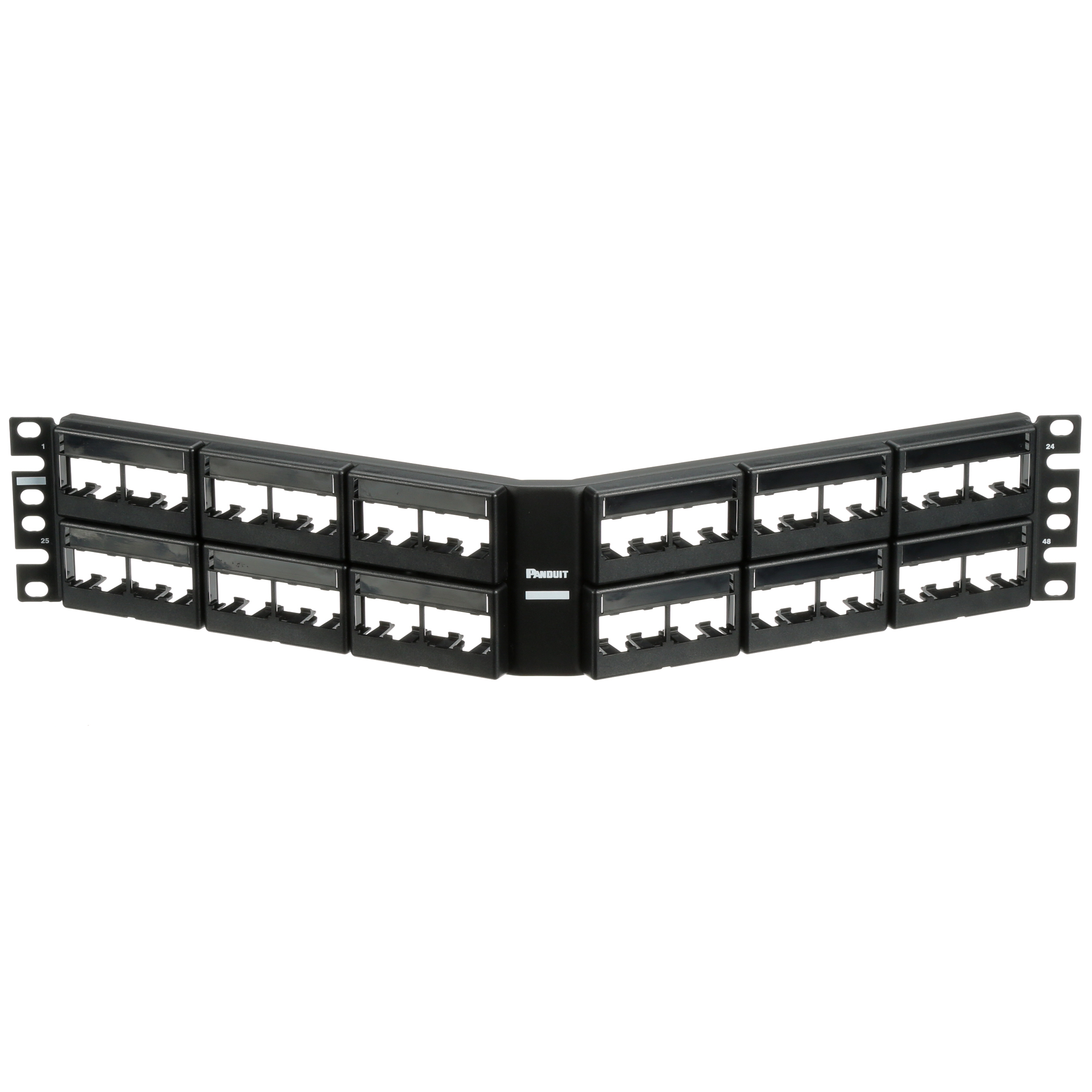

24-port, 1 RU, modular patch panel with front access faceplate and label pocket

CPPLA48WBLY

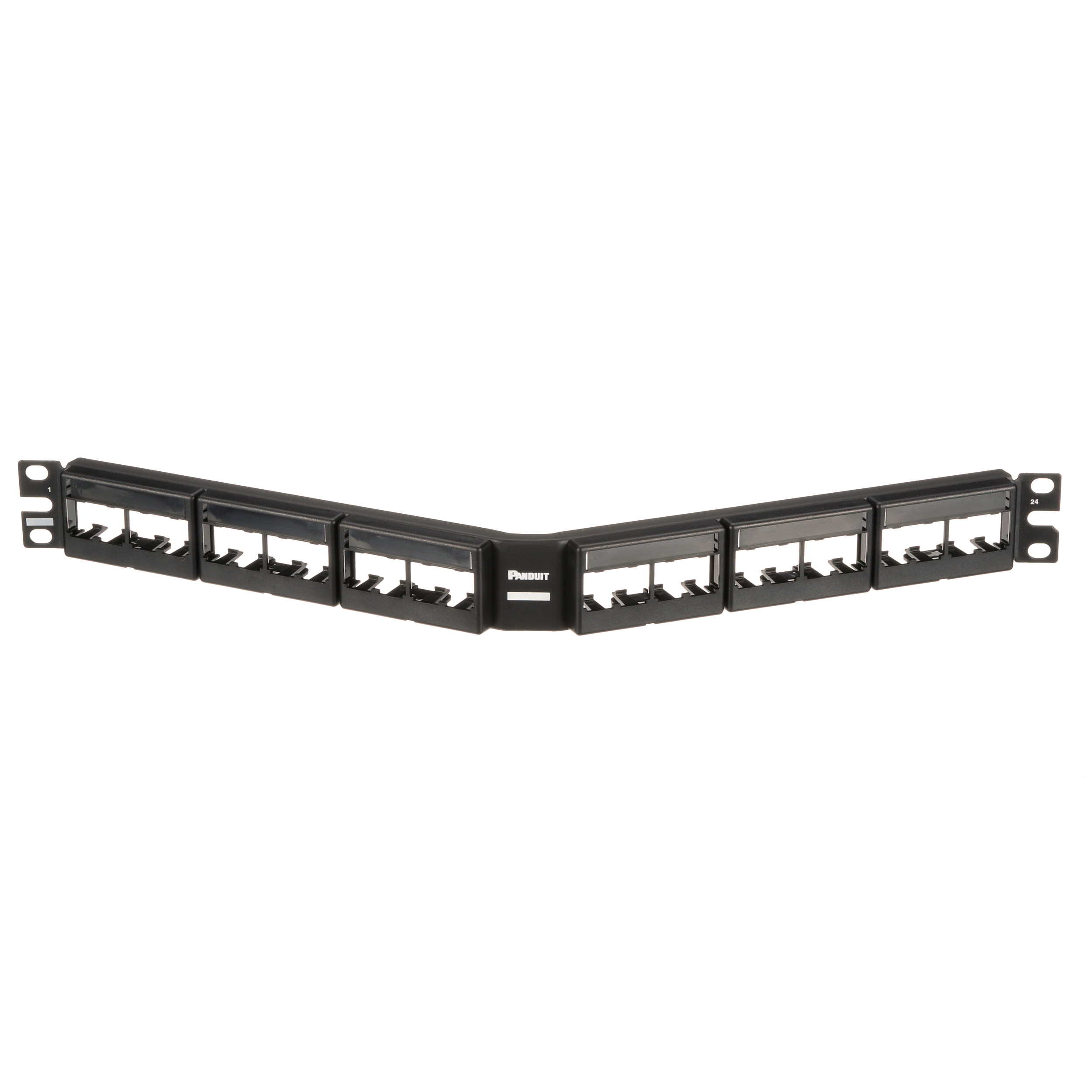

48-port, 2 RU, angled modular patch panel with front access faceplate and label pocket

CPPLA24WBLY

24-port, 1 RU, angled modular patch panel with front access faceplate and label pocket

Note: For a full range of modular patch panels, contact Panduit customer service.
