All Copper

Category 6 System Solutions Enhanced

Topics

Details

Key Features and Benefits

  • Designed to exceed ANSI/TIA-568.2-D channel requirements.
  • Installations covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards.
  • All connectivity components are 100% performance-tested.
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers.
  • Jack modules feature the patented Enhanced Giga-TX™ technology for terminations, which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist.
  • Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tangle-free latch which prevents snags and provides easy release for simple moves, adds and changes.
  • Patch panels are available in punchdown and modular styles and include flat and angled orientations.

Recommended for:

  • IEEE 802.3: 1000BASE-T, 100BASE-T, 10BASE-T, PoE, PoE+, PoE++
  • ANSI/TIA 854: 1000 BASE-TX
  • CDDI, Token Ring, ATM
  • Digital Video
  • Broadband and Baseband Analog Video
  • LEED projects
Electrical Value Guaranteed Channel Headroom over ANSI/TIA Category 6A
Insertion Loss
5%
NEXT
6 dB
PSNEXT
7.5 dB
ACR-N
7 dB
PSACR-N
9 dB
ACR-F
7 dB
PSACR-F
9 dB
Return Loss
3 dB

* Electrical values are above specified standards and consist of worst pair margin per ANSI/TIA 568.2-D Category 6 and ISO 11801 Class E standards.

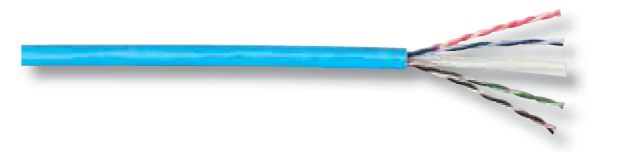

GenSPEED® 6000 Enhanced Category 6 Cable

Features and Benefits

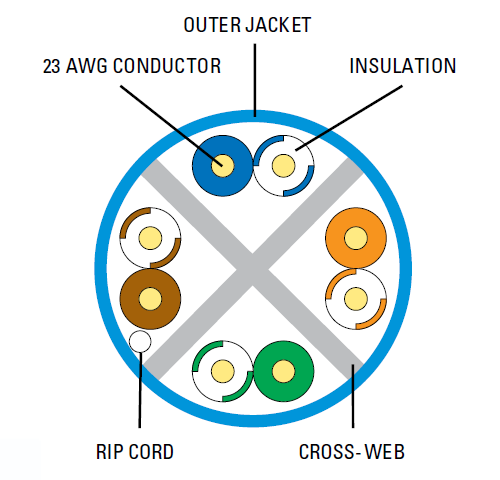

  • Innovative cross-web design allowing for maximum pair separation, increasing key electrical performance parameters.
  • Performance guaranteed to 350 MHz.
  • Improved cable temperature rating (105°C plenum, 75°C riser) for greater protection against increased operating temperatures.
  • UL listed CMP-LP (0.7A) for plenum.
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc).
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc.
  • TRU-Mark® print legend contains footage markings from 1000’ to 0’.
  • Third-party verified.
  • Made in the U.S.A.

Part Numbers

Jacket Color Pull-Pac® II CMP (Plenum) Pull-Pac® II CMR (Non-Plenum)

Blue
7131900
7133900

White
7131901
7133901

Yellow
7131902
7133902

Gray
7131903
7133903

Red
71311904
7133904

Orange
7131905
7133905

Green
7131906
7133906

Black
7131907
7133907

Pink
7131908
7133908

Purple
7131909
33909

Also available in Spool and Spool Pac®. Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and lead time may apply. Non-stock items may be subject to minimum order quantities.

Panduit Connectivity

Mini-Com® TX6™ PLUS UTP Jack Modules

  • Exceed ANSI/TIA-568.2-D Category 6, IEEE 802.3an-2006 and ISO 11801 Class E channel standards.
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
  • All jack modules are 100% performance-tested and individually serialized for future traceability.
  • Operating temperature: -10˚C to 75˚C (14˚F to 167˚F).
  • Terminate full range of 22-26 AWG conductors allowed per ANSI/TIA-568.2-D.
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc).
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc.
  • UL 2043 (suitable for use in air-handling spaces).
  • Support IEEE 802.3af, 802.3at and IEEE 802.3bt Type 3 and Type 4 for all PoE applications up to 100 W.
CJ688TGBU*

Category 6, RJ45, 8-position, 8-wire universal module.

CJ688TGBU*-24

24-pack Category 6, RJ45, 8-position, 8-wire universal module.

CJ688TGBU*-C

100-pack Category 6, RJ45, 8-position, 8-wire universal module.

CJH688TGBU*

Category 6, RJ45, 8-position, 8-wire shuttered universal module with spring-shuttered door.

45° Angled Wire Cap for Cat 6A UTP TG Jack
CJUDCAPIW-X

45° angled up/down TG wire cap off white. Foruse with TX6™ jack.

45° Angled Wire Cap for Cat 6A UTP TG Jack
CJLRCAPIW-X

45° angled left/right TG wire cap off white. For use with TX6™ jack.

close-up of FP6X88MTG
FP6X88MTG

Category 6A RJ45 UTP Field Term Plug for field termination of 4-pair unshielded twisted pair cable. For use with EGJT-1 Termination Tool.

close-up of FPUD6X88MTG
FPUD6X88MTG

Category 6A RJ45 UTP Field Term Plug with up/down wire cap for field termination of 4-pair unshielded twisted pair cable. Compatible with Category 6 channel.

FC-ICCP0.5MBU

Category 6A UTP FieldCord Connector for field termination of 4-pair unshielded twisted pair cable. FC-ICCP0.5MBU Compatible with Category 6 channel.

* Product is listed in Blue. To designate a different color, replace BU (Blue) with available colors: IW (Off White), EI (Electric Ivory), IG (International Grey), WH (White), BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange), or VL (Violet).

TX6 PLUS and TX6-28 Copper UTP Patch Cords

  • Exceed all industry performance standards for Category 6.
  • 100% performance-tested.
  • Available in a variety of colors and lengths for design flexibility.
  • Category 6 28 AWG cord is less than 50% the size of traditional 24 AWG cord.
  • UTP28SP cords support up to 96 m of channel length (when used with 6 m of patch).
  • Compatible with RapidID™ Network Mapping System.
UTPSP3*Y
Diameter: 0.235 in

Category 6, UTP patch cord with TX6 PLUS modular plugs on each end.

UTP28SP3*
Diameter: 0.150 in

Category 6, 28 AWG, small diameter UTP patch cord with TX6 PLUS modular plugs on each end.

* Available in lengths 1 to 50 feet (increments of one foot) and 55 to 130 feet (increments of five feet). Patch cords listed in Off White. ^ To designate other colors,replace ^ with color designation: BL (Black), B(UB lue), GR (Green), OR (Orange), RD (Red), YL (Yellow), or VL (Violet).

DP6™ PLUS UTP Patch Panels

  • • Mount to standard EIA 19” racks.
  • DP6 PLUS UTP patch panels exceed all industry performance standards for Category 6.
  • Angled versions are ideal for higher density applications; facilitate proper bend radius control and minimize the need for horizontal cable managers.
  • Each port is 100% tested to ensure NEXT and RL performance and is individually serialized to support traceability.
  • Utilize 110 punchdown termination on back of panel and include retention cap for each port.
  • Color-coded for T568A and T568B wiring schemes.
DP24688TGY

24-port, 1 RU, Category 6 patch panel with 24 RJ45, 8-position, 8-wire ports.

DPA24688TGY

24-port angled, 1 RU, Category 6 patch panel with 24 RJ45, 8-position, 8-wire ports.

DP48688TGY

48-port, 2 RU, Category 6 patch panel with 48 RJ45, 8-position, 8-wire ports.

DPA48688TGY

48-port angled, 2 RU, Category 6 patch panel with 48 RJ45, 8-position, 8-wire ports.

Note: For a full range of modular patch panels, contact Panduit customer service.
