Category 6A System Solutions Premium+ (Small Diameter)

Topics

Details

Key Features and Benefits

  • Designed to exceed ANSI/TIA-568.2-D channel requirements
  • Installations covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards
  • All connectivity components are 100% performance-tested
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers
  • The First 0.230” Cat 6A cable in the industry with innovative design providing guaranteed performance
  • Jack modules feature the patented Enhanced Giga-TX™ technology for terminations, which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
  • Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tangle-free latch which prevents snags and provides easy release for simple moves, adds and changes
  • Patch panels are available in punchdown and modular styles and include flat and angled orientations
  • With EPDs and HPDs achieved by both cable and connectivity, the solution counts towards two LEED® points and satisfies two out of five suppliers required per point

Recommended for:

  • IEEE 802.3: 10GBASE-T, 1000BASE-T, 100BASE-T, 10BASE-T, 2.5GBASE-T, 5GBASE-T
  • HDBaseT™
  • Best PoE performance in the industry to support PoE, PoE+ and PoE++ (4PPoE)
  • LEED projects
Electrical Value Guaranteed Channel Headroom over ANSI/TIA Category 6A
Insertion Loss
3%
NEXT
3.5 dB
PSNEXT
5 dB
ACR-F
10 dB
PSACR-F
10 dB
Return Loss
3 dB
ACR-N
6 dB
PSACR-N
6.5 dB
PSANEXT
4 dB
PSAACR-F
10 dB

* Electrical values are above the specified standards and consist of worst pair margin per ANSI/TIA 568.2-D Category 6A.

GenSPEED® 10 MTP™ Category 6A Cable

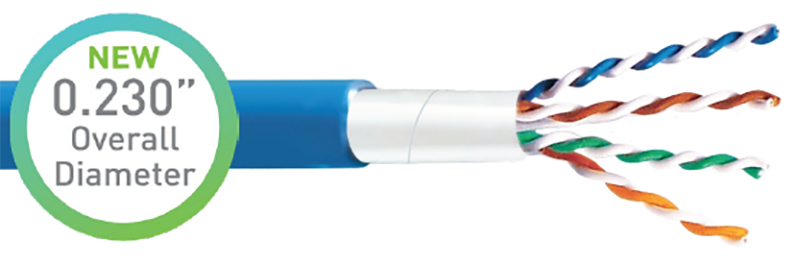

Category 6a plus close-up

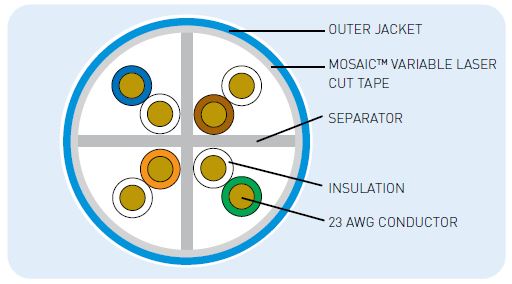

GenSPEED® 10 MTP™ Category 6A Cable Cross-Cut
  • Utilizes innovative Mosaic™ Variable Laser Cut Tape to provide superior protection against alien crosstalk
  • Variable laser cut pattern delivers maximum protection against EMI noise
  • Smaller cable diameter allows for greater cable density, reducing cable management costs
  • Simplified design and improved bend radius make it easier to strip, terminate and route, reducing installation time and expense
  • UL Listed CMP-LP 0.7A and CMR-LP 0.5A with certified performance for high-power PoE applications
  • CMP – UL verified with certified performance for 100W power over HDBaseT
  • CMP 105°C jacket rating provides greater protection against increased operating temperatures and for high-wattage applications
  • The internal separator optimizes internal pair geometry to yield superior electrical performance and maintain flexibility
  • TRU-Mark® print legend contains footage markings from 1000’ to 0’
  • Smaller cable diameter allows for greater cable density, reducing cable management costs
  • All GenSPEED® products are made in the U.S.A.

Physical Data

Feature CMP
Nominal Cable Diameter (in)
0.230
Nominal Cable Weight (lbs/1000 ft)
30
Minimum Bend Radius (in)
1
Maximum Pulling Force (lbs)
40
Installation Temperature Rating (ºC)
0 to +60
Operation Temperature Rating (ºC)
-20 to +105

Part Numbers

Jacket Color CMP (Plenum) Pull-Pac®

Blue
7151839

White
7151850

Gray
7151851

Yellow
7151852

Green
7151853

Red
7151854

Purple
7151855

Orange
7151856

Pink
7151857

Black
7151858

* Non-stock items may be subject to minimum order quantities.

Panduit Category 6A Connectivity

Mini-Com® Jack Modules

  • Exceed ANSI/TIA-568.2-D Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load
  • All jack modules are 100% performance-tested and individually serialized for future traceability
  • Operating temperature: -10˚C to 65˚C (14˚F to 149˚F)
  • Terminates full range of 22-26 AWG conductors allowed per ANSI/TIA-568.2-D
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc)
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc
  • UL 2043 (suitable for use in air-handling spaces)
  • Support IEEE 802.3af, 802.3at and IEEE 802.3bt Type 3 and Type 4 for all PoE applications up to 100 W
close-up of CJ6X88TGBU
CJ6X88TGBU

Category 6A, RJ45, 8-position, 8-wire universal module

close-up of CJ6X88TGBU-24
CJ6X88TGBU*-24

24-pack Category 6A, RJ45, 8-position, 8-wire universal module

close-up of CJH6X88TGBU
CJH6X88TGBU*

Category 6A, RJ45, 8-position, 8-wire shuttered universal module with spring-shuttered door

close-up of CJUDCAPBU-X
CJUDCAPBU-X**

45° angled up/down TG wire cap blue. For use with TX6A™ 10Gig jack

close-up of CJLRCAPBU-X
CJLRCAPBU-X**

45° angled left/right TG wire cap blue. For use with TX6A™ 10Gig jack

close-up of FP6X88MTG
FP6X88MTG

Category 6A RJ45 UTP Field Term Plug for field termination of 4-pair unshielded twisted pair cable

close-up of FPUD6X88MTG
FPUD6X88MTG

Category 6A RJ45 Field Term Plug with 45° up/down angled wire cap for field termination of 4-pair unshielded twisted pair cable

6A UTP Connector, Plenum RJ45 Cord, 1 M
FC-ICCP1MBU

Category 6A UTP FieldCord™ Connector, RJ45, 1 meter plenum cord

* Product is listed in Blue. To designate a different color, replace BU (Blue) with available colors: IW (Off White), EI (Electric Ivory), IG (International Grey), WH (White), BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange), or VL (Violet).

** Product also available in 100 pk. Replace -X with -C.

Copper Patch Cords

  • Exceed requirements of ANSI/TIA-568.2-D Category 6A, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load
  • Support IEEE 802.3af, 802.3at and IEEE 802.3bt type 3 and type 4 for all PoE applications up to 100 W
  • Available in a variety of colors and lengths for design flexibility
  • Category 6A 28 AWG patch cords are less than 50% the size of traditional 24 AWG patch cords, with a diameter of only 0.185″
  • UTP28X supports a 96-meter channel with 6 meters of patch
Cat 6A 24 AWG UTP Copper Patch Cord, 10 ft, Blue
UTP6AX10BU
Diameter: 0.250 in

Category 6A, 24 AWG. 10Gb/s UTP patch cord with TX6A™ 10 Gig modular plugs on each end

Cat 6A 28 AWG UTP Copper Patch Cord, 7 ft, IW
UTP28X7*
Diameter: 0.185 in

Category 6A performance, 28 AWG, small diameter, 10 Gb/s UTP patch cord with modular plugs on each end

* Product is listed in Blue. To designate a different color, replace BU (Blue) with available colors: IW (Off White), EI (Electric Ivory), IG (International Grey), WH (White), BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange), or VL (Violet).

Patch Panels

  • Mount to standard EIA 19” racks
  • DP6A™ 10Gig UTP Patch Panels exceed all industry performance standards for Category 6A
  • DP6A™ 10Gig UTP patch panels utilize 110 punchdown termination on back panel and include retention cap for each port
  • Optional label kits (DPLK24 and DPLK48) contain adhesive label holder and labels for easy port and panel identification
close-up of DP246X88TGY
DP246X88TGY

24-port, 1 RU, Category 6A patch panel with 24 RJ45, 8-position, 8-wire ports

close-up of DP486X88TGY
DP486X88TGY

48-port, 2 RU, Category 6A patch panel with 48 RJ45, 8-position, 8-wire ports

close-up of DPA486X88TGY
DPA486X88TGY

48-port angled, 2 RU, Category 6A patch panel with 48 RJ45, 8-position, 8-wire ports

Note: For a full range of modular patch panels, contact Panduit customer service.
