Category 6A Shielded U/FTP System Solutions

Key Features and Benefits

Designed to exceed ANSI/TIA 568.2-D channel requirements.
Installations covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards.
A single point of contact for all PanGen inquiries.
All connectivity components are 100% performance-tested.
Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers.
Outstanding performance on all electrical parameters to provide a system that exceeds all applicable standards.

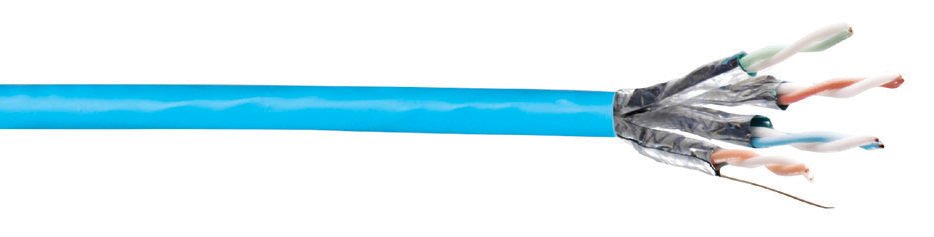

A shielded twisted pair (STP) cable with individually shielded pairs for optimized isolation between pairs and immunity from external noise as well as an overall shielded construction.
TRU-Mark® footage marking system to help eliminate unused lengths of cable and save installation time.
Jack modules feature the patented Enhanced Giga-TX™ technology for terminations, which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist.
Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tangle-free latch which prevents snags and provides easy release for simple moves, adds and changes.
Modular patch panels are available in flat and angled styles.

Recommended for:

IEEE 802.3: 10G BASE-T, 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE++.
ANSI/TIA 854: 1000 BASE-TX.
Digital Video
Broadband and Baseband Analog Video
CDDI, Token Ring, ATM
LEED projects

Electrical Value	Guaranteed Channel Headroom over ANSI/TIA Category 6A	Guaranteed Channel Headroom over ISO Class E_A
Insertion Loss	3%	3%
NEXT	3.5 dB	2.5 dB
PSNEXT	5 dB	4 dB
PSACR-F	10 dB	10 dB
PSACR-N	6.5 dB	6.5 dB
PSANEXT	20 dB	20 dB
PSAACR-F	20 dB	20 dB
Return Loss	3 dB	3 dB

* Electrical values are above specified standards and consist of worst pair margin per ANSI/TIA 568.2-D Category 6A and ISO 11801 Class EA standards.

Features and Benefits

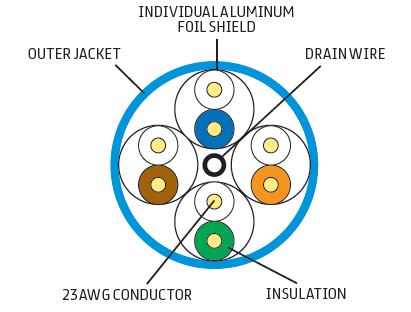

Individually shielded pair design allows for maximum pair separation, increasing key electrical performance parameters and providing EMI protection.
Typical positive PSACR beyond 500 MHz for increased available bandwidth.
Improved cable temperature rating (90°C plenum, 75°C riser) for greater protection against increased operating temperatures.
UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc).
Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc.
TRU-Mark® print legend contains footage markings from 1000’ to 0’.
Made in U.S.A.

Part Numbers

Jacket Color	CMP (Plenum) Spool	CMR (Non-Plenum) Spool
Blue	7131786	7133768
White	7131787	7133787

Contact Prysmian Customer Service to see all colors and options.

Non-stock items may be subject to minimum order quantities.

Mini-Com® TX6A™ 10Gig Shielded Jack Modules

Exceed ANSI/TIA 568.2-D Category 6A, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards.
Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
Support IEEE 802.3af, 802.3at and 802.3bt type 3 and type 4 for all PoE applications up to 100 W.
Fully grounded and bonded to patch panel when installed in Panduit All-Metal Modular Patch Panels (0.187” grounding tab for grounding jacks).
Operating temperature: -10˚C to 75˚C (14˚F to 167˚F).
UL Certified EPD and HPD for LEED credits under MRc.
UL 2043 (suitable for use in air-handling spaces).

CJS6X88TG*Y

Category 6A, shielded, RJ45, 8-position, 8-wire universal module

CJS6X88TGY-24

24-pack Category 6A, shielded, RJ45, 8-position, 8-wire universal module

CJSH6X88TG*Y

Category 6A, shielded, RJ45, 8-position, 8-wire universal module with springshuttered door

FPS6X88MTG

Category 6A RJ45 Shielded Field Term Plug for field termination of 4-pair shielded twisted pair cable

The standard shielded jack is BL (Black): CJS6X88TGY

*Color Designation: BU (Blue), RD (Red), YL (Yellow), GR (Green), or VL (Violet). Ex: CJS6X88TGBUY.

Shield grounding requires proper installation of shielded jack module and the use of shielded patch cords and cable. For grounding shielded modules not installed in a shielded patch panel, see Panduit’s shielded jack module grounding kit, CJSGK-XY.

TX6A and TX6A-28 10Gig Shielded Patch Cords

Exceed requirements of ANSI/TIA 568.2-D Category 6A, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards.
Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
Compatible with the RapidID Network Mapping System.
Plug performance in center of TIA component range, ensuring interoperability and 10G BASE-T Ethernet channel performance.
Support IEEE 802.3af, 802.3at and 802.3bt type 3 and type 4 for all PoE applications up to 100 W.

STP6X*IG

Category 6A, 26 AWG, 10 Gb/s shielded S/FTP patch cord with TX6A modular plugs on each end

STP28X**MIG

Category 6A, 28 AWG, small diameter, 10 Gb/s shielded F/UTP patch cord with TX6A 10Gig modular plugs on each end

*Available lengths: 3 to 20 feet (one foot increments), 25 to 40 feet (five foot increments); **Available lengths: 0.5-10 meters (0.5 meter increments), 11-20 meters (one meter increments), and 25-40 meters (5 meter increments). Replace * or ** in part number with length designation.
Available colors: IG (International Grey), BL (Black), BU (Blue), GR (Green), RD (Red), YL (Yellow), OR (Orange), or VL (Violet). To designate a color other than International Grey, replace IG with color code.

Mini-Com All-Metal Shielded Modular Patch Panels

Mount to standard EIA 19” racks.
Panels grounded when installed into rack with thread-forming bonding screws.
Panel provides seamless bonding of the jack module when jack module is snapped in.
High-density panels support 48 ports in 1 RU density.

CP24BLY

24-port, 1 RU, all-metal modular, patch panel

CPA24BLY

24-port, 1 RU, angled, all-metal modular patch panel

CP24WSBLY

24-port, 1 RU, all-metal modular patch panel with strain relief bar

CP48BLY

48-port, 2 RU, all-metal modular patch panel

CPA48BLY

48-port, 2 RU, angled, all-metal modular patch panel

CP48WSBLY

48-port, 2 RU, all-metal modular patch panel

CP48HDBL

48-port, 1 RU, high-density, all-metal modular patch panel

CPA48HDBL

48-port, 1 RU, angled, high-density, all-metal modular patch panel

HD patch panels do not require CPT tool. For full range of modular patch panels, contact Panduit customer service.
