All Copper

Category 6A System Solutions Standard

Topics

Details

Key Features and Benefits

  • Designed to exceed ANSI/TIA-568.2-D channel requirements.
  • Installations covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards.
  • All connectivity components are 100% performance-tested.
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers.
  • Smallest Cat 6A Cable in the industry with innovative design providing guaranteed performance.
  • Jack modules feature the patented Enhanced Giga-TX™ technology for terminations, which optimizes
    performance by maintaining cable pair geometry and eliminating conductor untwist.
  • Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tangle-free latch which prevents snags and provides easy release for simple moves, adds and changes.
  • Patch panels are available in punchdown and modular styles and include flat and angled orientations.
  • With EPDs and HPDs achieved by both cable and connectivity, the solution counts towards two LEED® points and satisfies two out of five suppliers required per point.

Recommended for:

  • IEEE 802.3: 10G BASE-T, 1000 BASE-T, 100 BASE-T, 10 BASE-T, 2.5G BASE-T, 5G BASE-T
  • HDBaseT™
  • Best PoE performance in the industry to support PoE, PoE+ and PoE++ (4PPoE)
  • LEED projects
Electrical Value Guaranteed Channel Headroom over ANSI/TIA Category 6A
Insertion Loss
3%
NEXT
3.0 dB
PSNEXT
5 dB
ACR-F
10 dB
PSACR-F
10 dB
Return Loss
3 dB
ACR-N
6 dB
PSACR-N
6.5 dB
PSANEXT
2 dB
PSAACR-F
10 dB

GenSPEED® 10 UTP Category 6A Cable

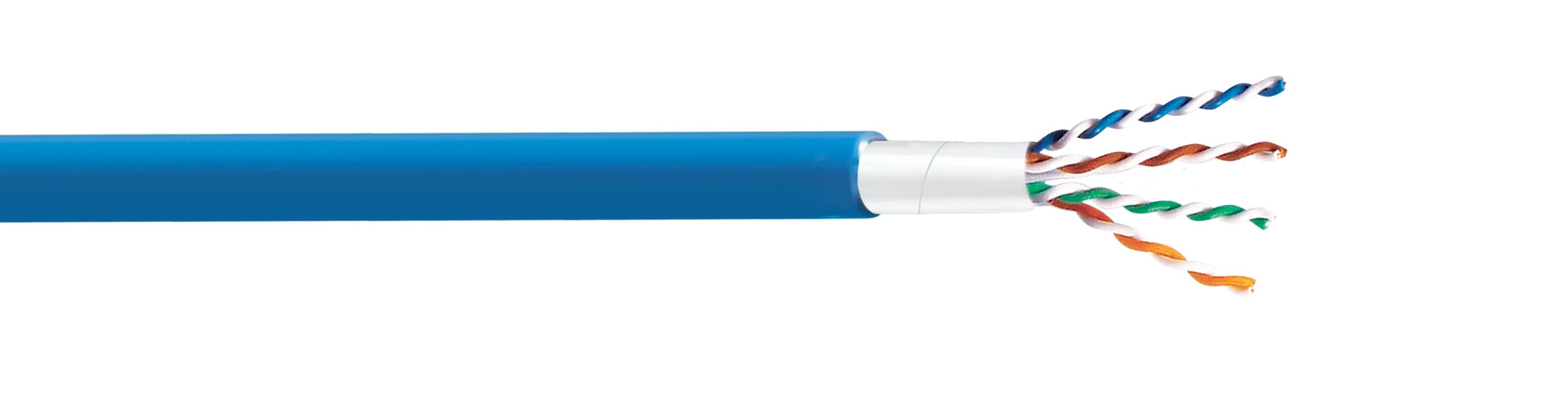

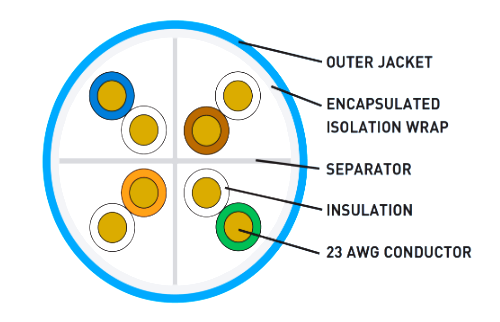

GenSPEED® 10 MTP™ Small Diameter Category 6A Cable

CMR version includes pair separator.

Features and Benefits

  • Utilizes innovative Mosaic laser cut technology to provide superior protection against alien crosstalk.
  • Random laser cut pattern delivers maximum protection against EMI noise interference.
  • UL Listed CMP-LP 0.7A with certified performance for high power PoE applications up to 140 W.
  • UL Listed CMR-LP 0.5A with certified performance for high power PoE applications up to 100 W.
  • UL verified with certified performance for 100W power over HDBaseT.
  • Smaller cable diameter allows for greater cable
    density, reducing cable management costs.

Physical Data

Feature CMP CMR
Nominal Cable Diameter (in)
0.230
0.260
Nominal Cable Weight (lbs/1000 ft)
30
32
Minimum Bend Radius (in)
1
1
Maximum Pulling Force (lbs)
40
40
Installation Temperature Rating (ºC)
0 to +60
0 to +60
Operation Temperature Rating (ºC)
-20 to +105
-20 to +75

Part Numbers

Jacket Color CMP (Plenum) Spool CMP (Plenum) Pull-Pac® CMR (Non-Plenum) Spool CMR (Non-Plenum) Pull-Pac®

Blue
7151819
7151869
7143819
7143800

White
7151820
7151870
7143820
7143801

Yellow
7151822
7151871
7158322
7143802

Gray
7151821
7151872
7143821
7143802

Red
7151824
7151875
7143823
7143804

Orange
7151826
7151874
7143826
7143805

Green
7151823
7151875
7143823
7143806

Black
7151828
7151876
7143828
7143807

Pink
7151827
7151878
7143827
7143808

Purple
7151825
7151877
7143825
7143809

*Note: Non-stock items may be subject to minimum order quantities.

Panduit Connectivity

Mini-Com® Jack Modules

  • Exceed ANSI/TIA-568.2-D Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards.
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
  • All jack modules are 100% performance-tested and individually serialized for future traceability.
  • Operating temperature: -10˚C to 65˚C (14˚F to 149˚F).
  • Terminates full range of 22-26 AWG conductors allowed per ANSI/TIA-568.2-D.
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc).
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc.
  • UL 2043 (suitable for use in air-handling spaces).
  • Support IEEE 802.3af, 802.3at and IEEE 802.3bt Type 3 and Type 4 for all PoE applications up to 100 W.
close-up of CJ6X88TGBU
CJ6X88TGBU*

Category 6A, RJ45, 8-position, 8-wire universal module

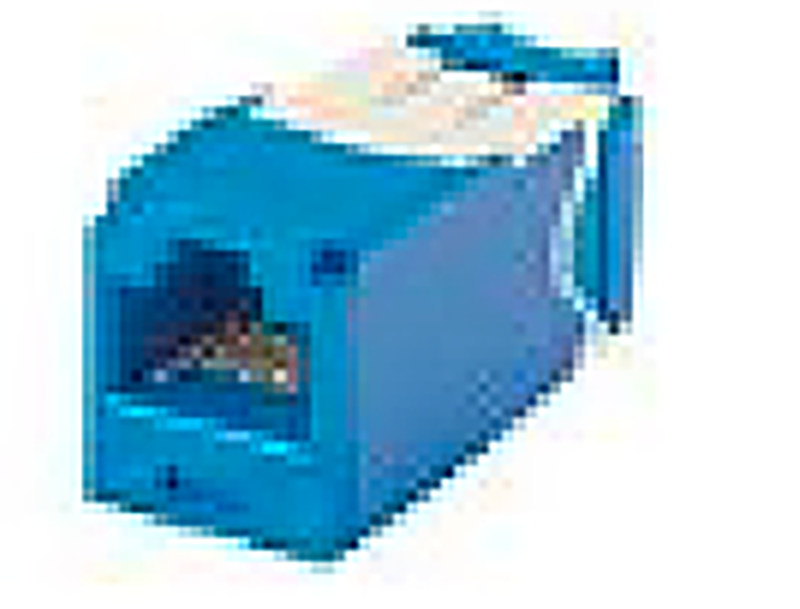

close-up of CJ6X88TGBU-24
CJ6X88TGBU*-24

24-pack Category 6A, RJ45, 8-position, 8-wire universal module

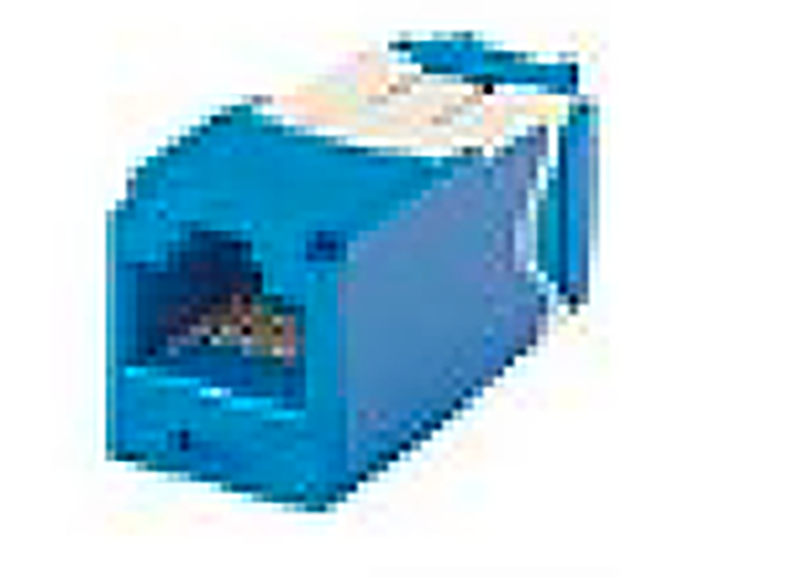

close-up of CJ6X88TGBU-24
CJ6X88TGBU*-C

100-pack Category 6A, RJ45, 8-position, 8-wire universal module

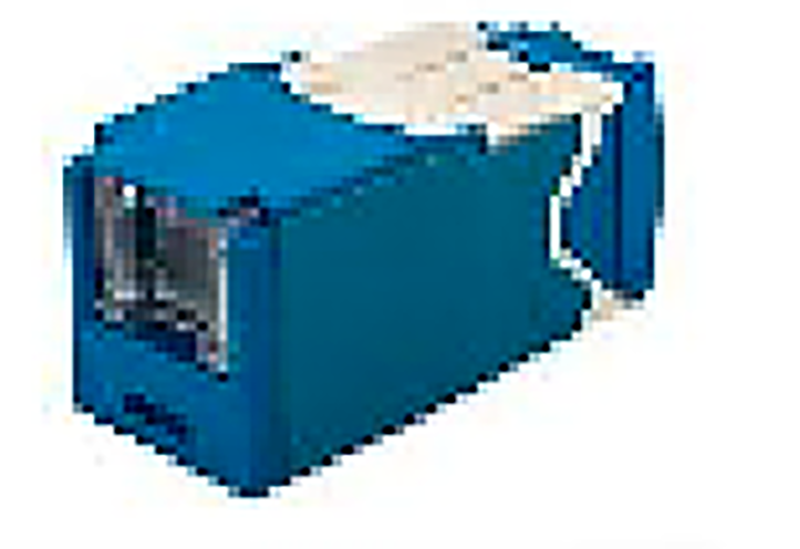

close-up of CJH6X88TGBU
CJH6X88TGBU*

Category 6A, RJ45, 8-position, 8-wire shuttered universal module with spring-shuttered door

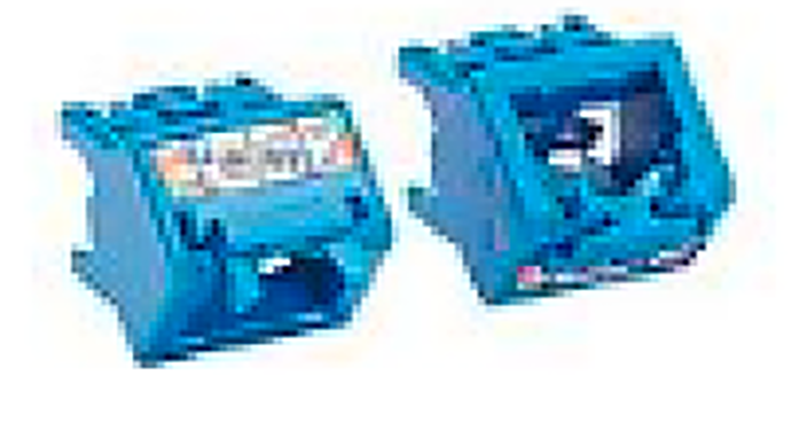

close-up of CJUDCAPBU-X
CJUDCAPBU-X**

45° angled up/down TG wire cap blue. For use with TX6A™ 10Gig jack

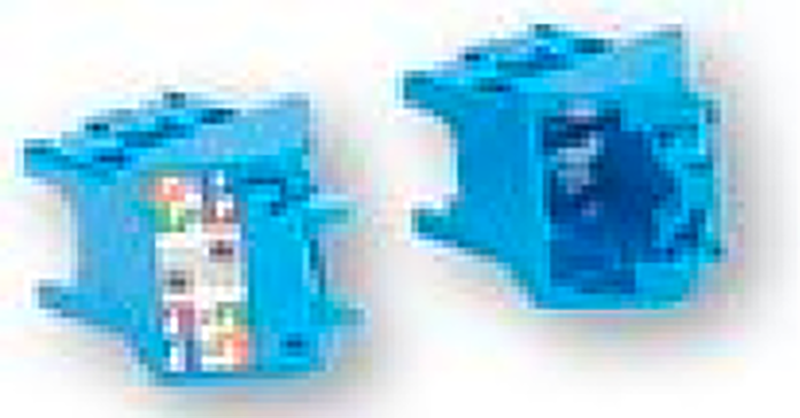

close-up of CJLRCAPBU-X
CJLRCAPBU-X**

45° angled left/right TG wire cap blue. For use with TX6A™ 10Gig jack

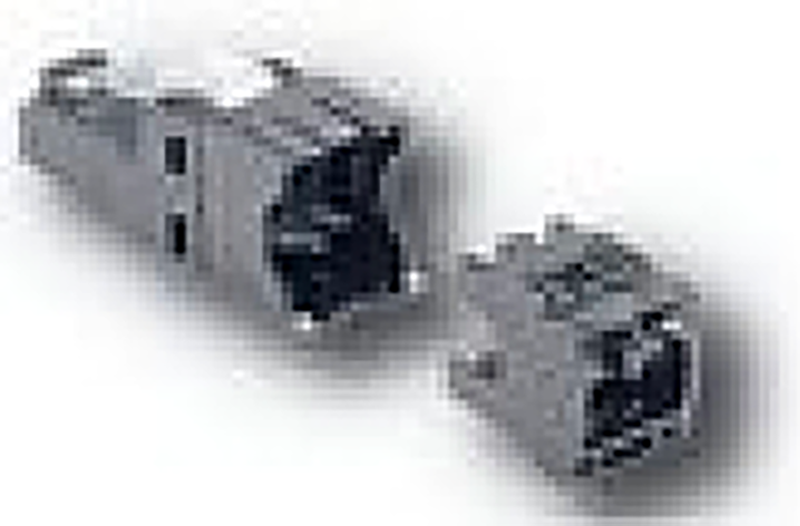

close-up of FP6X88MTG
FP6X88MTG

Category 6A RJ45 UTP Field Term Plug for field termination of 4-pair unshielded twisted pair cable

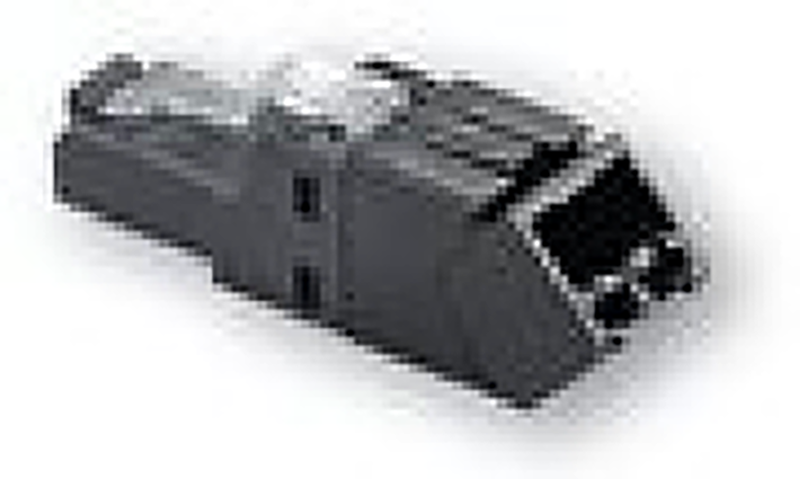

close-up of FPUD6X88MTG
FPUD6X88MTG

Category 6A RJ45 Field Term Plug with 45° up/down angled wire cap for field termination of 4-pair unshielded twisted pair cable

FC-ICCP0.5MBU

Category 6A UTP FieldCord Connector for field termination of 4-pair unshielded twisted pair cable

* Product is listed in Blue. To designate a different color, replace BU (Blue) with available colors: IW (Off White), EI (Electric Ivory), IG (International Grey), WH (White), BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange), or VL (Violet).

Copper Patch Cords

  • Exceed requirements of ANSI/TIA-568.2-D Category 6A, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards.
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
  • Support IEEE 802.3af, 802.3at and 802.3bt type 3 and type 4 for all PoE applications up to 100 W.
  • Available in a variety of colors and lengths for design flexibility.
  • UTP28X supports a 96-meter channel with 6 meters of patch.
  • Compatible with the RapidID™ Network Mapping System.

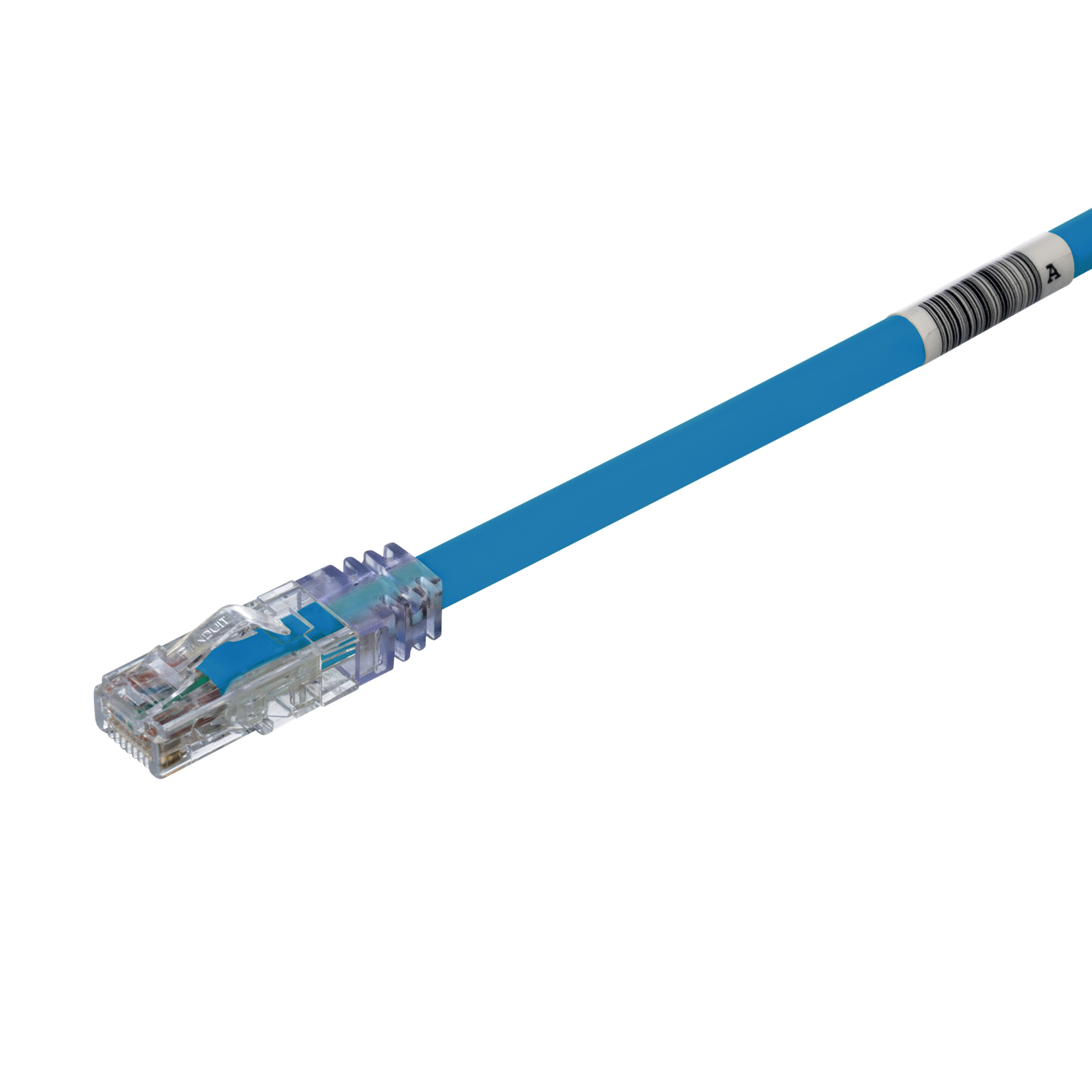

Cat 6A 24 AWG UTP Copper Patch Cord, 10 ft, Blue
UTP6AX3*
Diameter: 0.250 in

Category 6A, 24AWG, 10Gb/s UTP patch cord with enhanced performance modular plugs on each end.

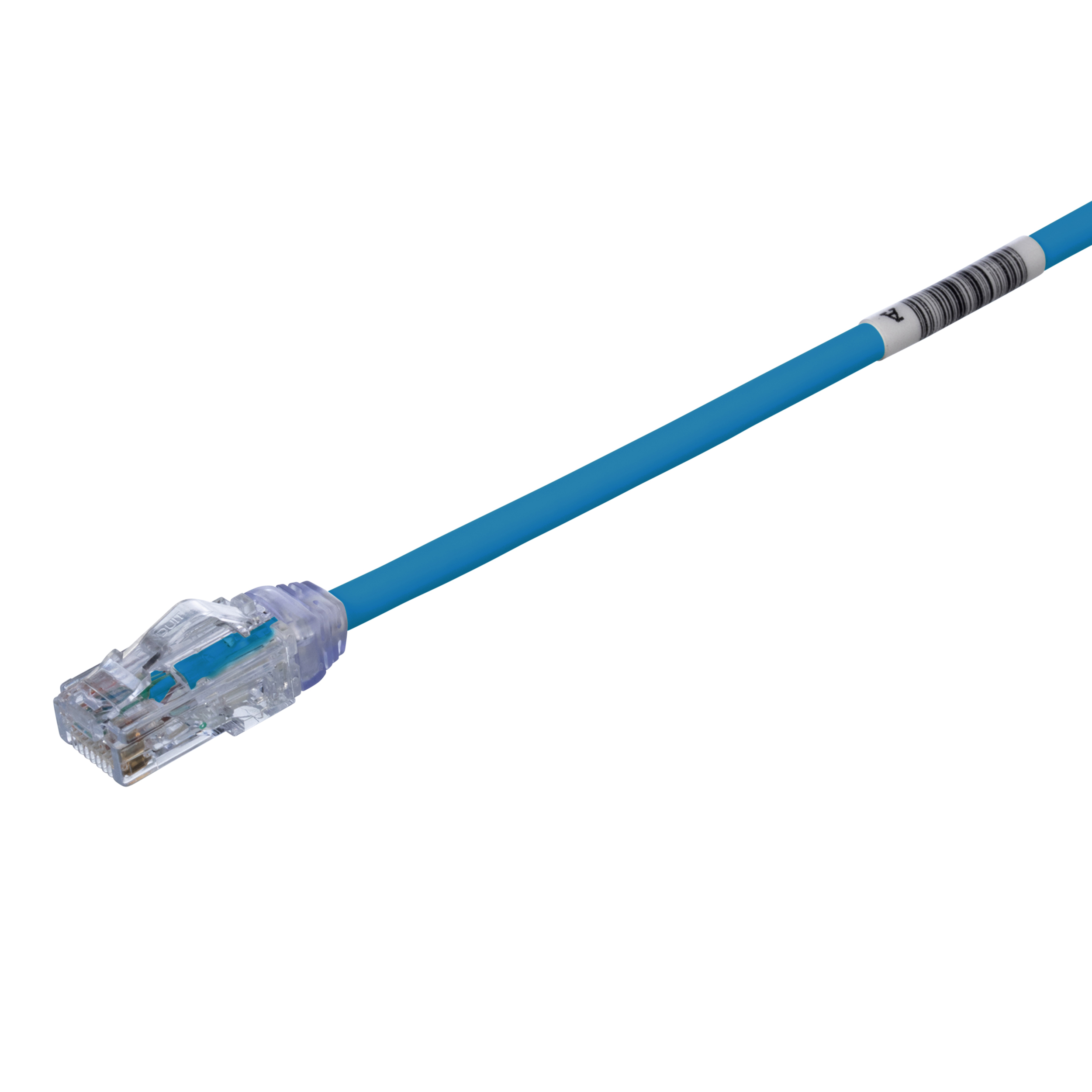

Cat 6A 28 AWG UTP Copper Patch Cord, 7 ft, IW
UTP28X3*
Diameter: 0.185 in

Category 6A performance, 28 AWG, small diameter, 10 Gb/s UTP patch cord with modular plugs on each end.

Available in lengths 1 to 50 feet (increments of one foot). Patch cords listed in Off White. To designate other colors, add suffix to end of part number: BL (Black), BU (Blue), GR (Green), OR (Orange), RD (Red), YL (Yellow), GY (Gray) or VL (Violet).

Patch Panels

  • Mount to standard EIA 19″ racks.
  • DP6A™ 10Gig UTP Patch Panels exceed all industry performance standards for Category 6A.
  • DP6ATM 10Gig UTP patch panels utilize 110 punchdown termination on back panel and include retention cap for each port.
  • Optional label kits (DPLK24 and DPLK48) contain adhesive label holder and labels for easy port and panel identification.

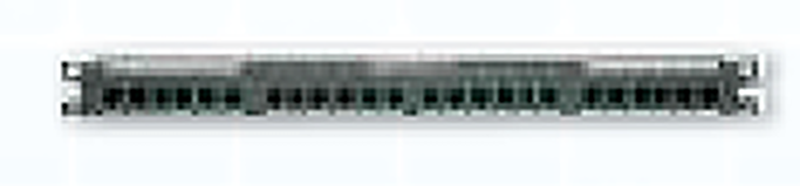

close-up of DP246X88TGY
DP246X88TGY

24-port, 1 RU, Category 6A patch panel with 24 RJ45, 8-position, 8-wire ports

DPA246X88TGY

24-port angled, 1 RU, Category 6A patch panel with 24 RJ45, 8-position, 8-wire ports.

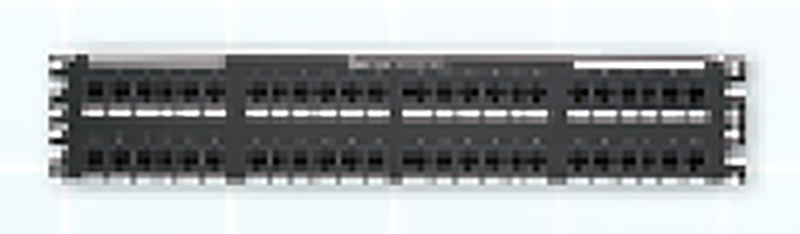

close-up of DP486X88TGY
DP486X88TGY

48-port, 2 RU, Category 6A patch panel with 48 RJ45, 8-position, 8-wire ports

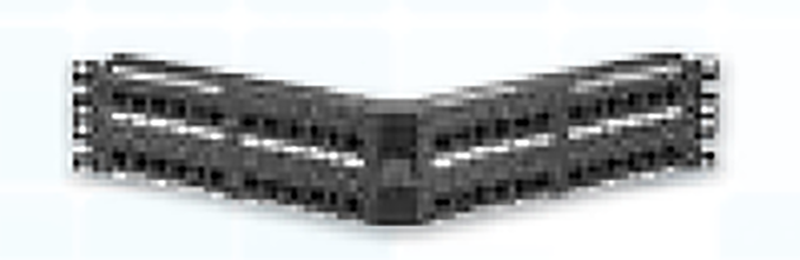

close-up of DPA486X88TGY
DPA486X88TGY

48-port angled, 2 RU, Category 6A patch panel with 48 RJ45, 8-position, 8-wire ports

Note: For a full range of modular patch panels, contact Panduit customer service.
