All Copper

Category 6A System Solutions Shielded

Topics

Details

Key Features and Benefits

  • Designed to exceed ANSI/TIA 568-C.2
  • Installations covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards
  • A single point of contact for all PanGen inquiries
  • All connectivity components are 100% performance-tested
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers
  • Outstanding performance on all electrical parameters to provide a system that exceeds all applicable standards
  • A shielded twisted pair (STP) cable with individually shielded pairs for optimized isolation between pairs and immunity from external noise as well as an overall shielded construction
  • TRU-Mark® footage marking system to help eliminate unused lengths of cable and save installation time
  • Jack modules feature the patented Enhanced Giga-TX™ technology for terminations, which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
  • Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tangle-free latch that prevents snags and provides easy release for simple moves, adds and changes
  • Modular patch panels are available in flat and angled styles
  • With EPDs and HPDs achieved by both cable and connectivity, the solution counts towards two LEED® points and satisfies two out of five suppliers required per point

Recommended for:

  • IEEE 802.3: 10GBASE-T, 1000BASE-T, 100BASE-T, 10BASE-T, PoE, PoE+, PoE++
  • Digital Video
  • Broadband and Baseband Analog Video
  • CDDI, Token Ring, ATM
  • LEED projects
Electrical Value Guaranteed Channel Headroom over ANSI/TIA Category 6A Guaranteed Channel Headroom over ISO Class EA
Insertion Loss
3%
3%
NEXT
3.5 dB
2.5 dB
PSNEXT
5 dB
4 dB
PSACR-F
10 dB
10 dB
PSACR-N
6.5 dB
6.5 dB
PSANEXT
20 dB
20 dB
PSAACR-F
20 dB
20 dB
Return Loss
3 dB
3 dB

GenSPEED® 10 Category 6A F/UTP (ScTP) Cable

  • An overall shielded or foiled-twisted pair (F/UTP) cable, requiring grounding and providing industry-leading protection from external cable noise sources, also known as alien crosstalk (PSANEXT and PSAACRF)
  • CMP 105C jacket rating provides consistent performance in a wide range of operating environments
  • UL Listed CMP-LP 0.7A with certified performance for high-power PoE applications
  • The internal separator optimizes internal pair geometry to yield superior electrical performance and maintain flexibility. This unique cross-web stabilizes each pair to create a smaller, round cable profile
  • TRU-Mark® print legend contains footage markings from 1000′ to 0′

Part Numbers

Jacket Color CMP (Plenum) Spool CMR (Non-Plenum) Spool

Blue
7141586
7143586

White
7141587
7143587

Yellow
7141588
7143588

Gray
7141589
7143589

Red
7141590
7143590

Orange
7141591
7143591

Green
7141592
7143592

Purple
7141593
7143593

Notes:

  • Standard packaging: 1000′ Spool
  • Non-stock items may be subject to minimum order quantities
  • Other colors available

Panduit Category 6A Connectivity

Mini-Com® TX6A™ 10 Gig Shielded Jack Modules

  • Exceed ANSI/TIA-568.2-D, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load
  • Support IEEE 802.3af, 802.3at and IEEE 802.3bt type 3 and type 4 for all PoE applications up to 100 W
  • Fully grounded and bonded to patch panel when installed in Panduit All-Metal Modular Patch Panels (0.187″ grounding tab for grounding jacks)
  • Operating temperature: -10˚C to 65˚C (14˚F to 149˚F)
  • UL Certified EPD and HPD for LEED credits under MRc
  • UL 2043 (suitable for use in air-handling spaces)
CJS6X88TGY

Category 6A, shielded, RJ45, 8-position, 8-wire universal module

CJS6X88TGY-24

24-pack Category 6A, shielded, RJ45, 8-position, 8-wire universal module

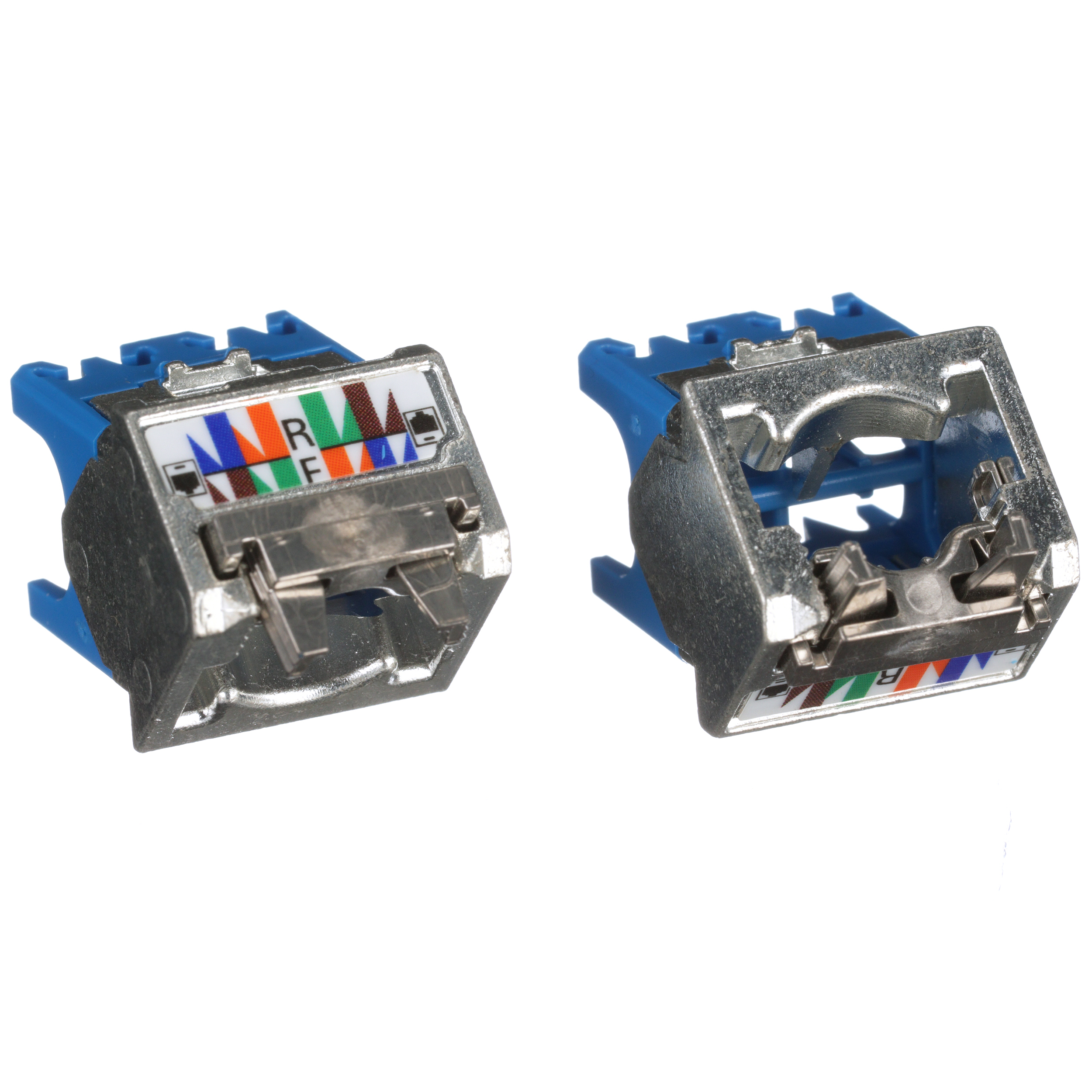

45° Angled Wire Cap for Cat 6A Shielded TG Jack
CJSUDCAPBU-X

5° angled up/down shielded TG wire cap, blue. For use with TX6A™ 10Gig Shielded Jack Modules

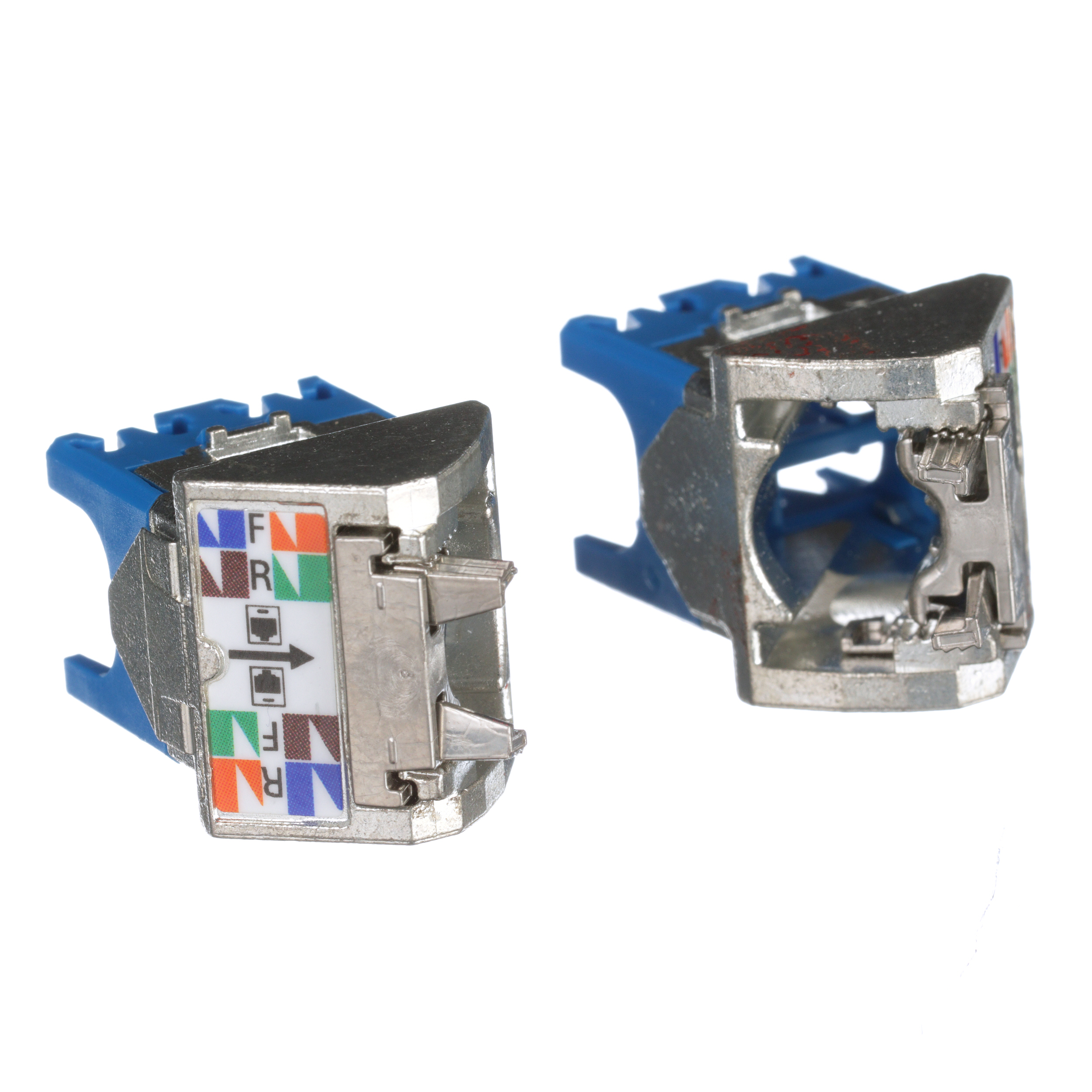

45° Angled Wire Cap for Cat 6A Shielded TG Jack
CJSLRCAPBU-X

45° angled left/right shielded TG wire cap, blue. For use with TX6A™ 10Gig Shielded Jack Modules

Note: The standard shielded jack is BL (Black): CJS6X88TGY

* To designate a color, add: BU (Blue), RD (Red), YL (Yellow), GR (Green), or VL (Violet). Ex: CJS6X88TGBUY
Shield grounding requires proper installation of shielded jack module and the use of shielded patch cords and cable. For grounding shielded modules not installed in a shielded patch panel, see Panduit’s shielded jack module grounding kit, CJSGK-XY.

TX6A™ and TX6A-28 Shielded Copper Patch Cords

  • Exceed requirements of ANSI/TIA-568.2-D, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load
  • Plug performance in the center of TIA component range, ensuring interoperability and 10GBASE-T Ethernet channel performance
  • Support IEEE 802.3af, 802.3at and IEEE 802.3bt type 3 and type 4 for all PoE applications up to 100 W

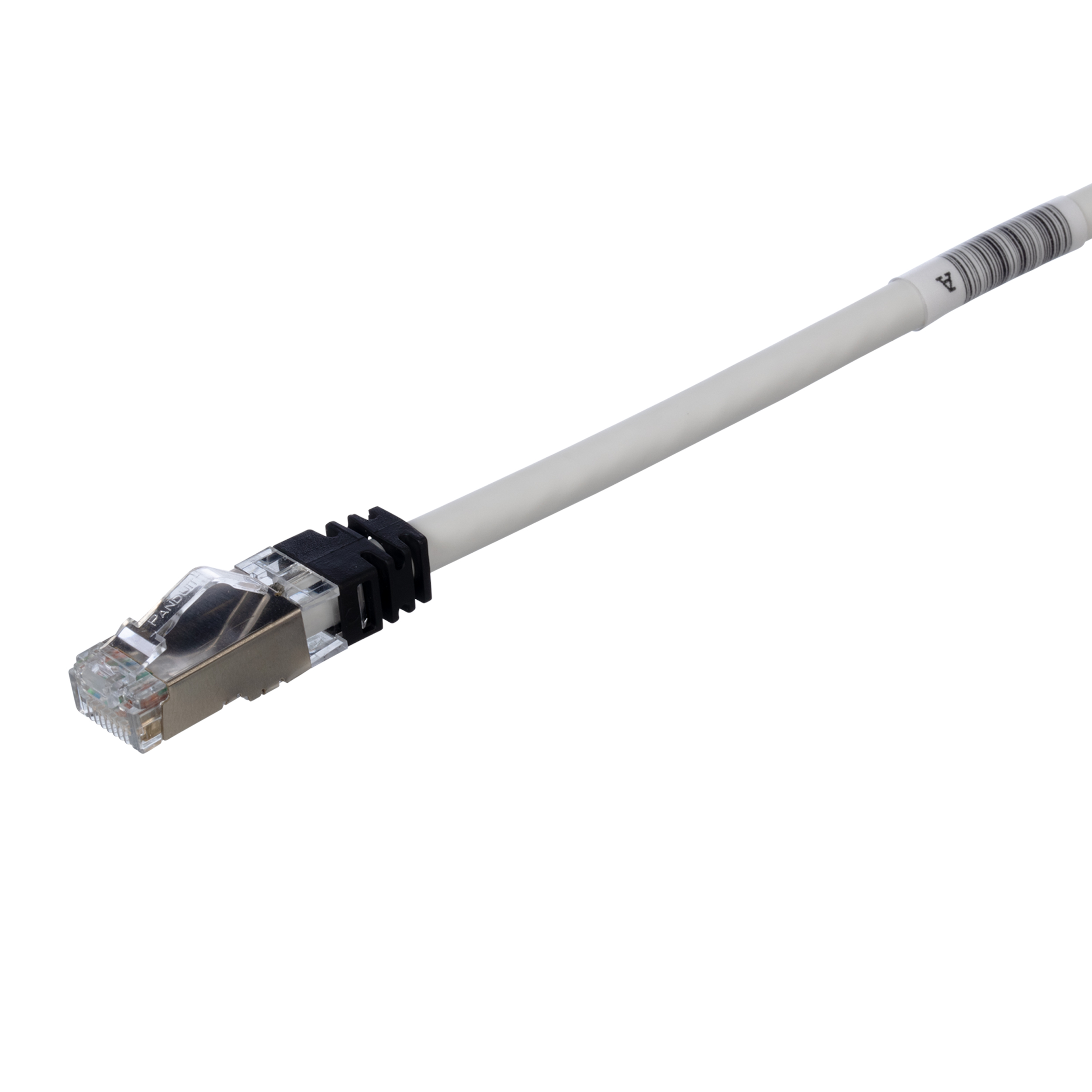

STP6X3*

Category 6A, 26 AWG, 10 Gb/s shielded S/FTP patch cord with TX6A modular plugs on each end

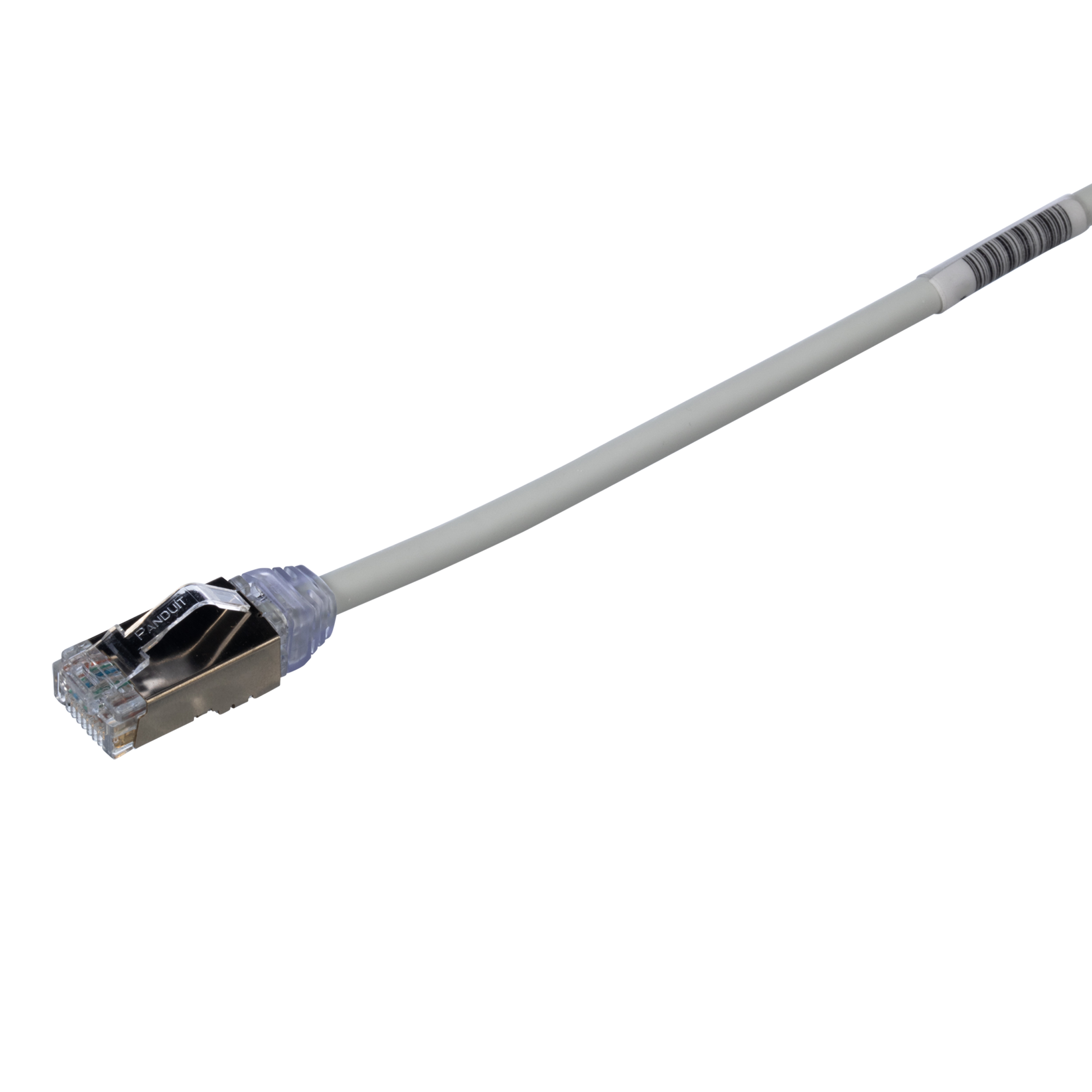

STP28X3**

Category 6A, 28 AWG, small diameter, 10 Gb/s shielded F/UTP patch ccord with TX6A 10Gig modular plugs on each end

* Available lengths: 1 to 20 feet (increments of one foot) and 25, 30, 35, 40 feet. Patch cords listed in Off White. to designate other colors, add suffix to end of part number: IG (International Grey), BL (Black), BU (Blue), GR (Green), OR (Orange), RD (Red), YL (Yellow), or VL (Violet).

** Available lengths: 0.5, 1, 1.5, 2, 2.5, 3-10 meters, 15, 20, 25, 30, 35 and 40 meters. Available colors: IG (International Grey), BL (Black), BU (Blue), GR (Green), OR (Orange), RD (Red), YL (Yellow), or VL (Violet).

Mini-Com All-Metal Shielded Modular Patch Panels

  • Mount to standard EIA 19″ racks
  • Panels grounded when installed into rack with thread-forming bonding screws
  • Panel provides seamless bonding of the jack module when jack module is snapped in
CP24BLY

24-port, 1 RU, all-metal modular patch panel

CP48BLY

48-port, 2 RU, all-metal modular patch panel

CPA48BLY

48-port, 2 RU, angled, all-metal modular patch panel
